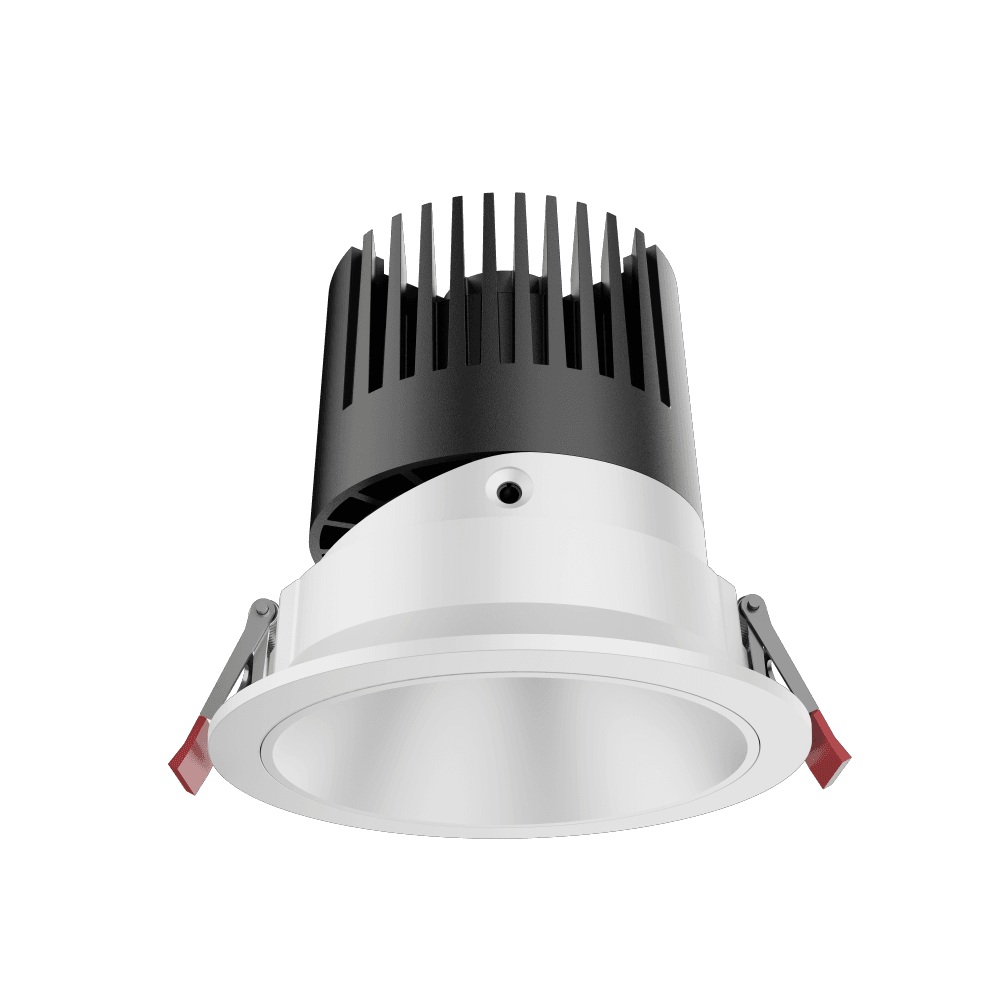

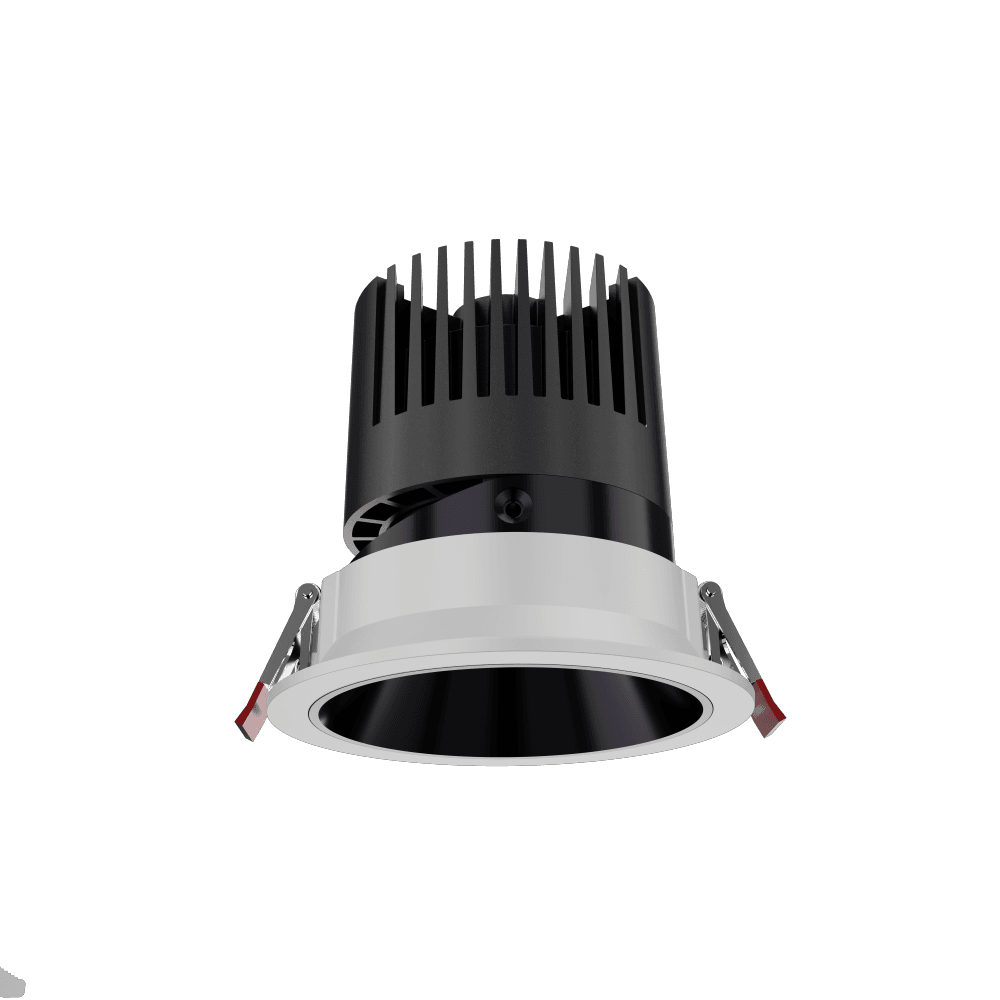

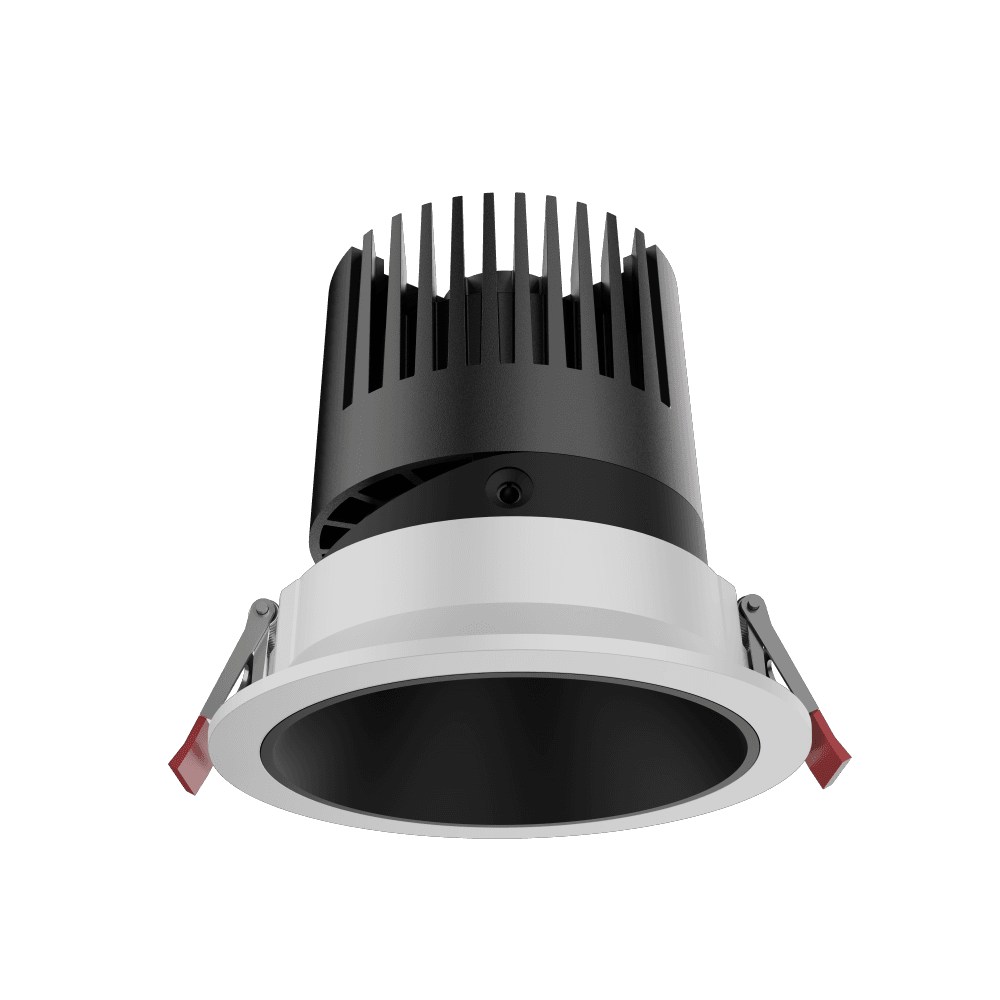

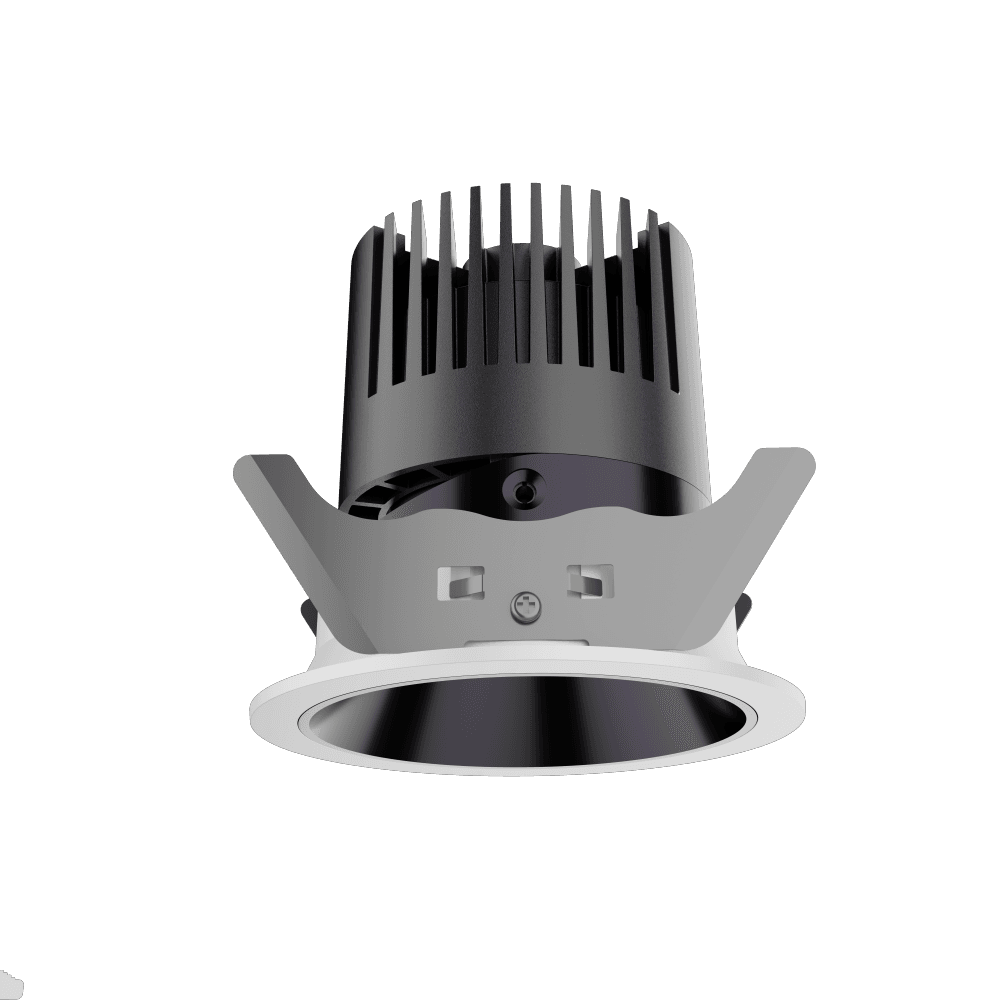

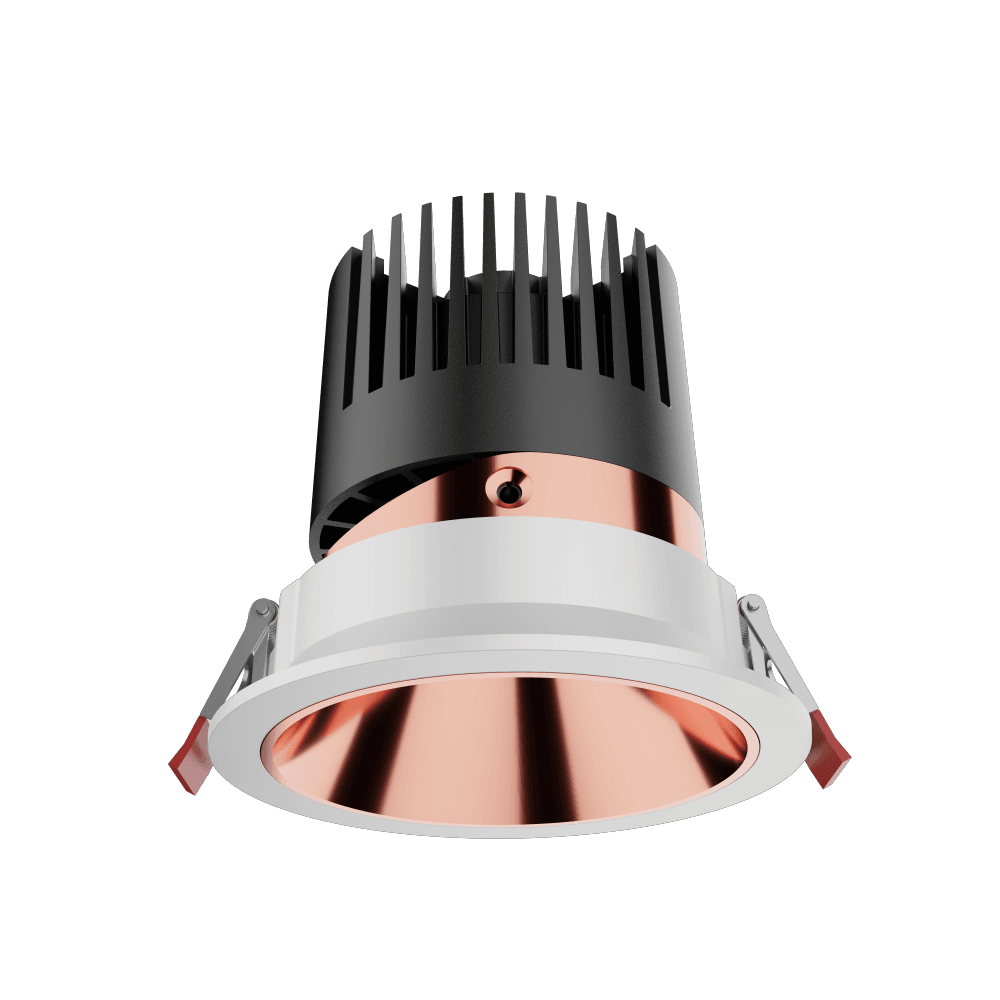

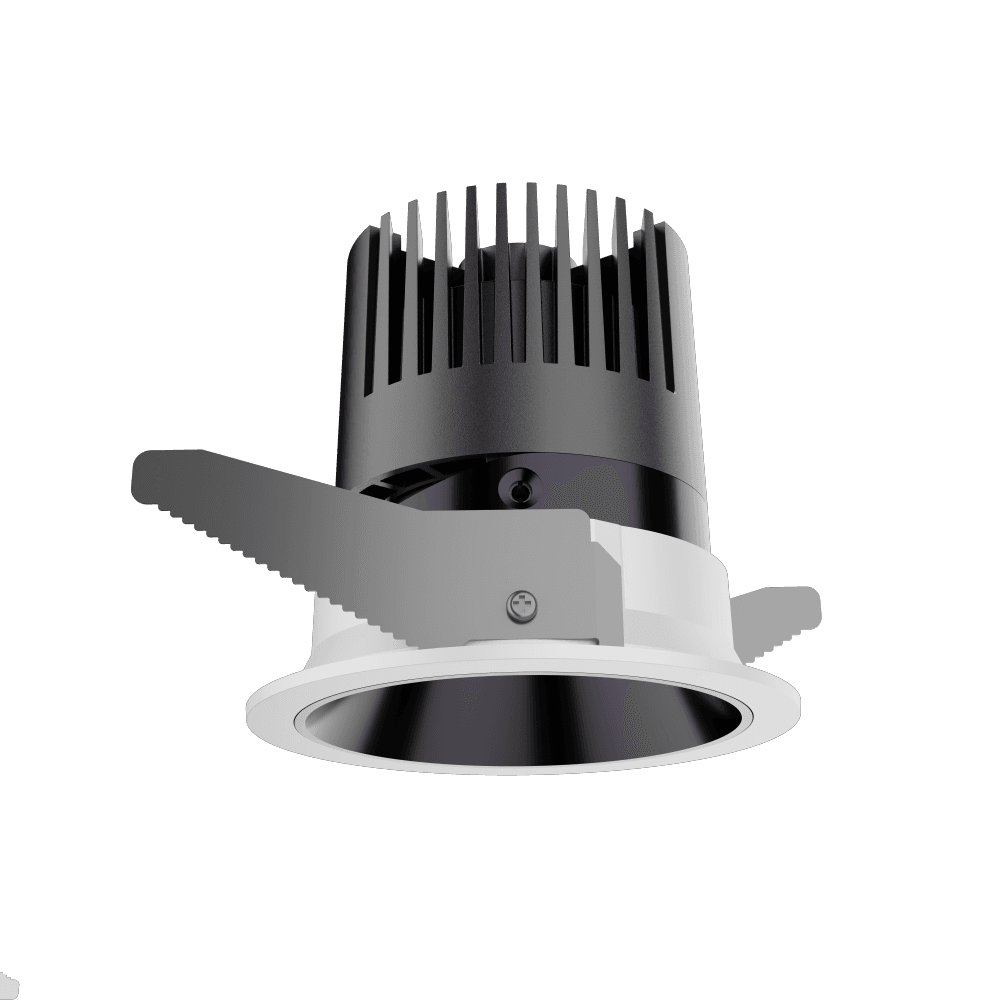

DL132 Adjustalbe Angle LED Down Light
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Features
LEDTEK’s The DL132 LED downlight features a deep reflector design concept that offers 15/24/36 degree beam angles while significantly reducing glare. It adopts high lumen Cree/Bridgelux COB LED.
The luminaire is made of ADC12 aluminium alloy, which ensures very good heat dissipation and reduces the light decay of the LEDs.
A highly reliable LED power supply is used. It can also be equipped with a 0/1-10V or DALI power supply according to customer requirements.
Model No | DL132-5W | DL132-7W | DL132-9W | DL132-12W | DL132-15W | DL132-20W |
|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 9W | 12W | 15W | 20W |
| Dimension(mm) | Φ66*H64 | Φ85*H71 | Φ85*H84 | Φ85*H84 | Φ105*H106 | Φ105*H106 |
| Cutting Hole | Φ55 | Φ75 | Φ75 | Φ75 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||
| Light Source | Cree/Bridgelux COB LED | |||||
| CCT | 3000K-6500K | |||||
| Luminous Flux (lm) ±5% | 500 | 700 | 900 | 1200 | 1500 | 2000 |
| CRI | >80(90 optional) | |||||
| Beam Angle | 24°/38° | |||||
| LED Driver | External LED Driver | |||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||
| Ingress Protection (IP Rating) | IP40 | |||||

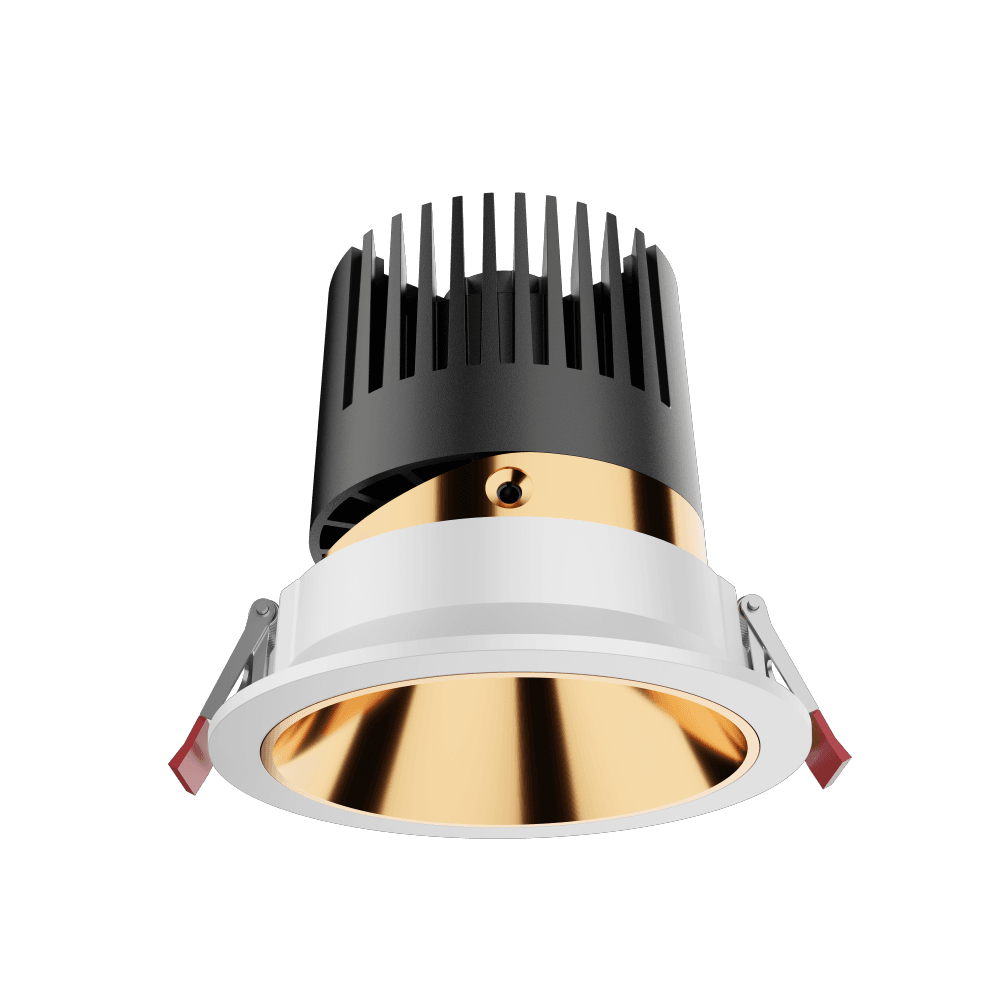

| Product Finishing | Reflector Color:Bright silver/Misty silver/Bright white/Misty White/Bright black/Misty black/gold etc | |||||
| Materials of Optics | PMMA | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Installation | Recessed | |||||
Email us to get more detail datasheet.

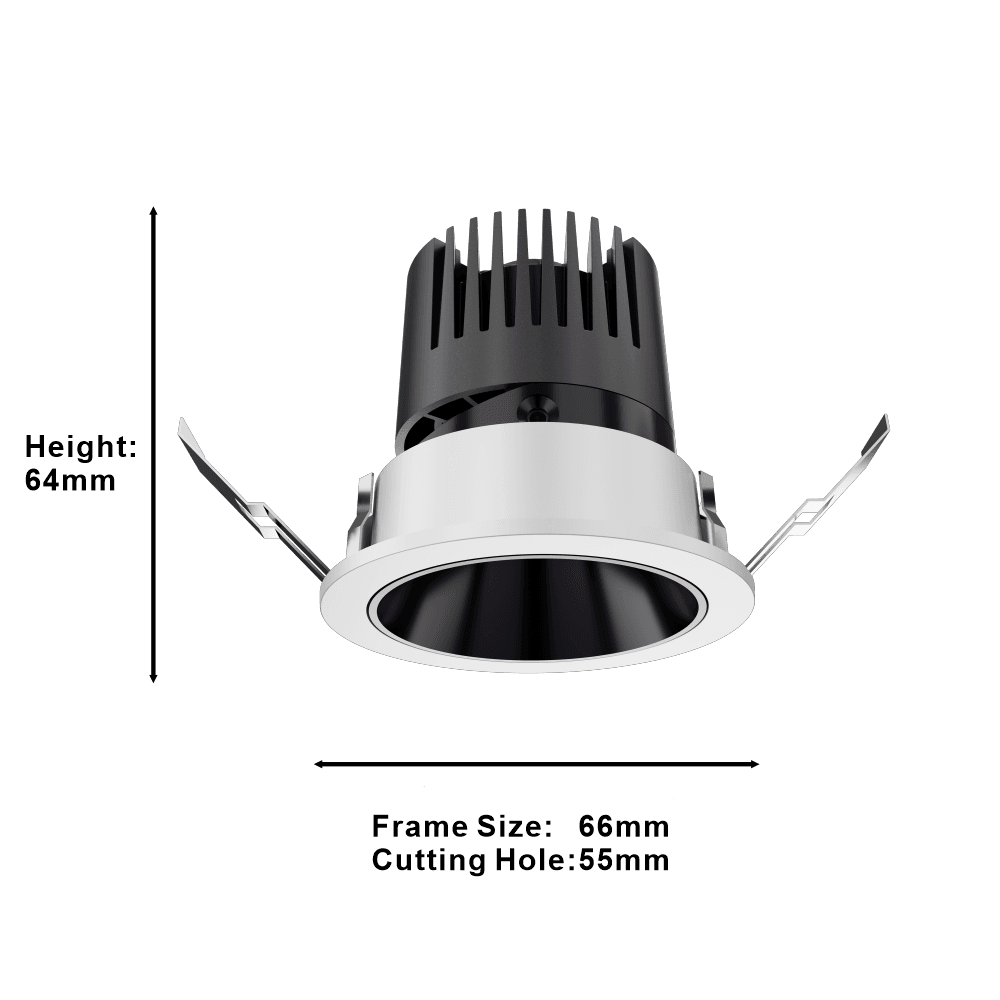

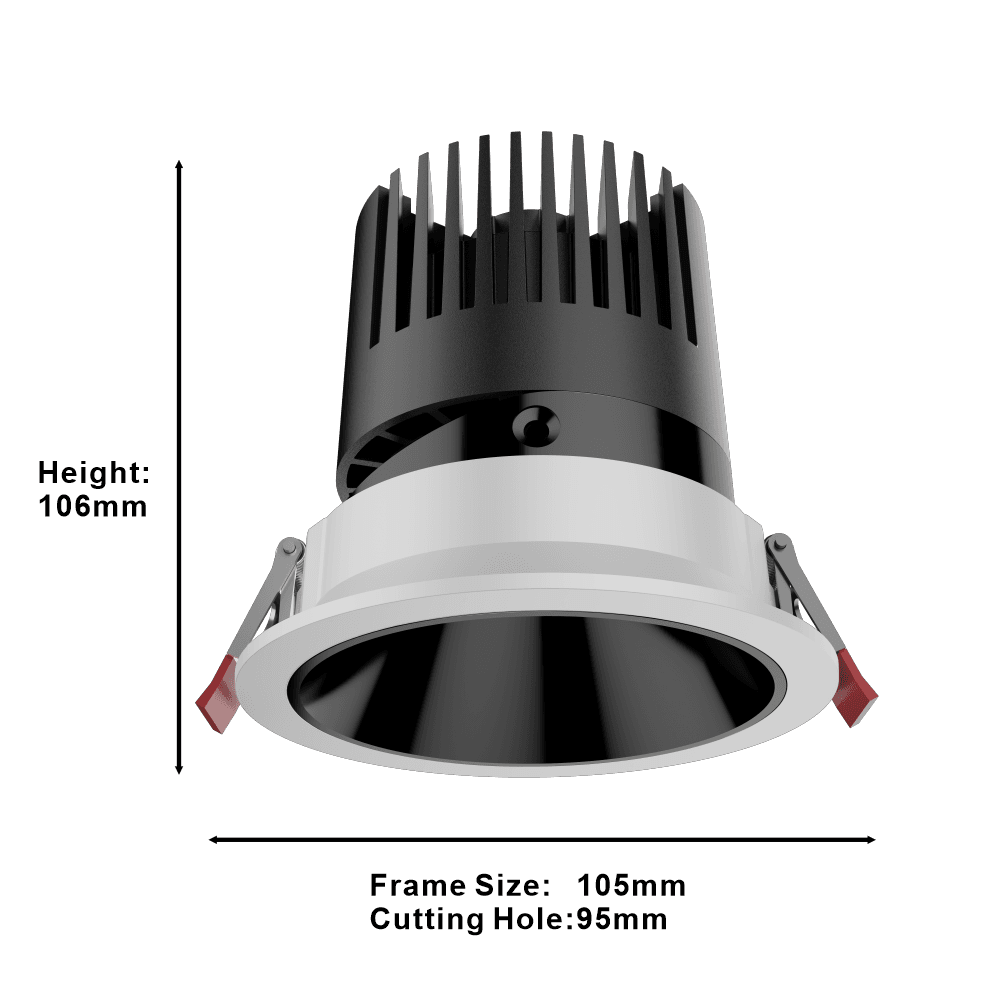

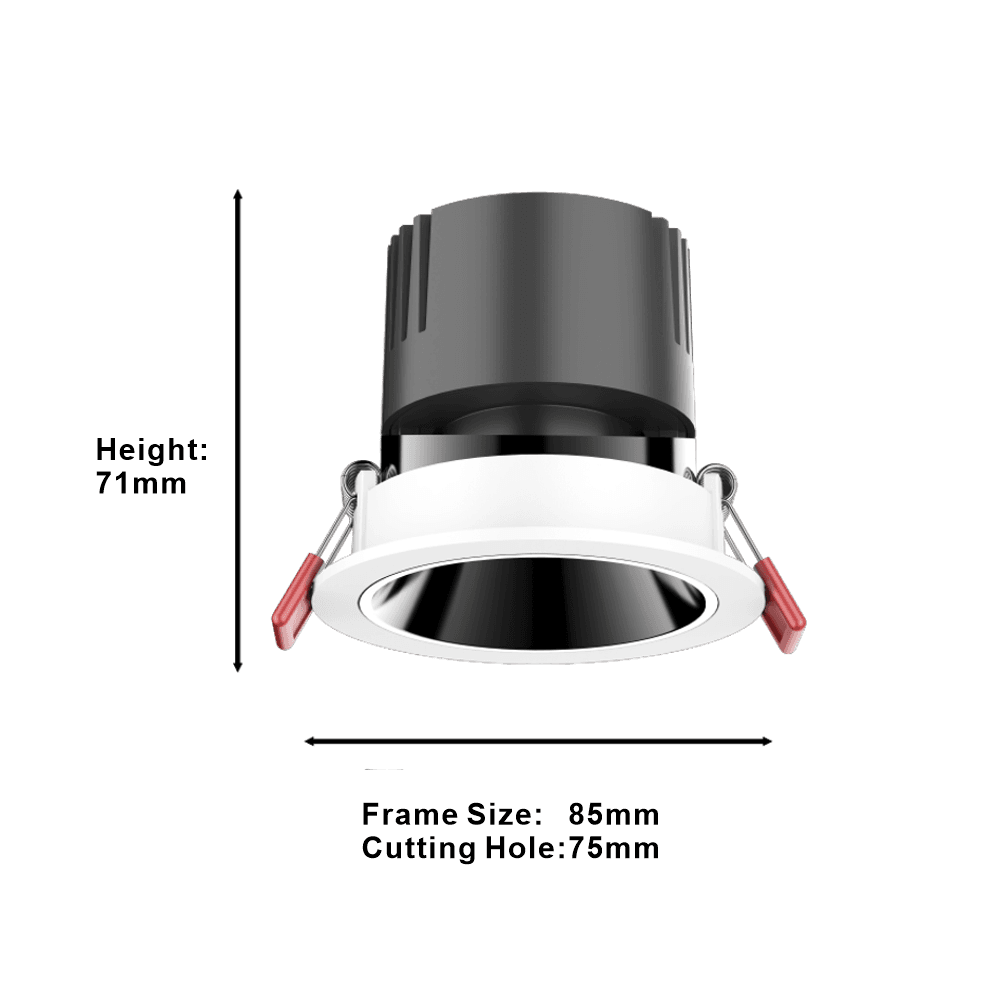

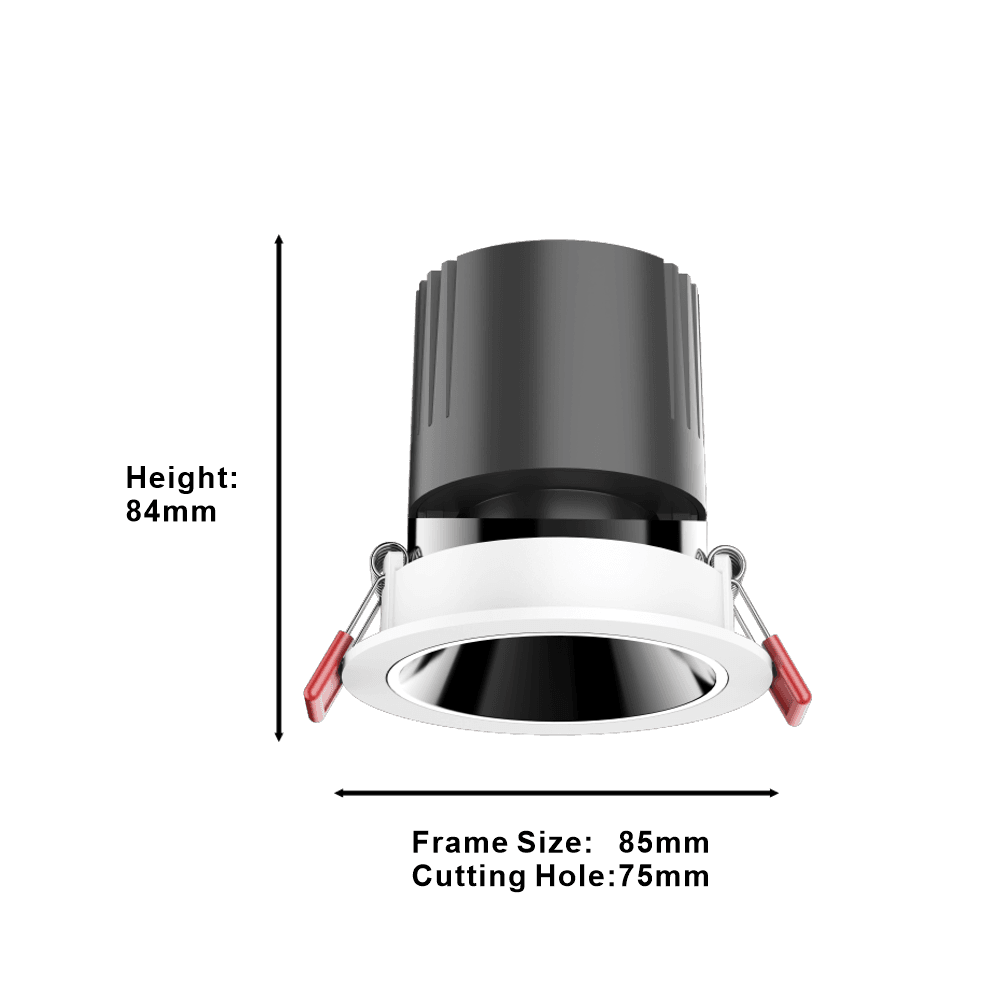

Product Size
