DL301 LED Surface Mounted DownLight
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc. And It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
Features
The DL301 Series High Brightness Downlight is a high lumen, anti-glare surface mounted downlight. It uses a combination of high lumen Cree brand COBs, reflectors and convex lenses for extremely high lumen output.The AL6063 aluminum housing provides good heat dissipation and ensures a long service life. In terms of appearance, it is available in white and black, both colors have gold decorative strips on the front, which is a good decoration for home lighting or commercial lighting.
<
Model No | DL301-10W | DL301-15W | DL301-20W | DL301-30W | DL301-50W | DL301-70W |
|---|---|---|---|---|---|---|
| Wattage | 10W | 15W | 20W | 30W | 50W | 70W |
| Dimension(mm) | Φ94*H110 | Φ114*H121 | Φ141*H141 | Φ170*H161 | Φ204*H181 | |
| Input Voltage(V) | AC110-240V 50/60Hz | |||||
| Light Source | Cree COB/BridgeLux COB | |||||
| CCT | 3000K-6500K | |||||
| Luminous Flux (lm) ±5% | 1000 | 1500 | 2000 | 3000 | 5000 | 7000 |
| CRI | >80(90 optional) | |||||
| Beam Angle | 30° | |||||
| LED Driver | Built-in LED Driver | |||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||||
| Ingress Protection (IP Rating) | IP40 | |||||
| Product Finishing |
| |||||
| Materials of Optics | PMMA | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Installation | Surfaced Mounted | |||||
Email us to get more detail datasheet.

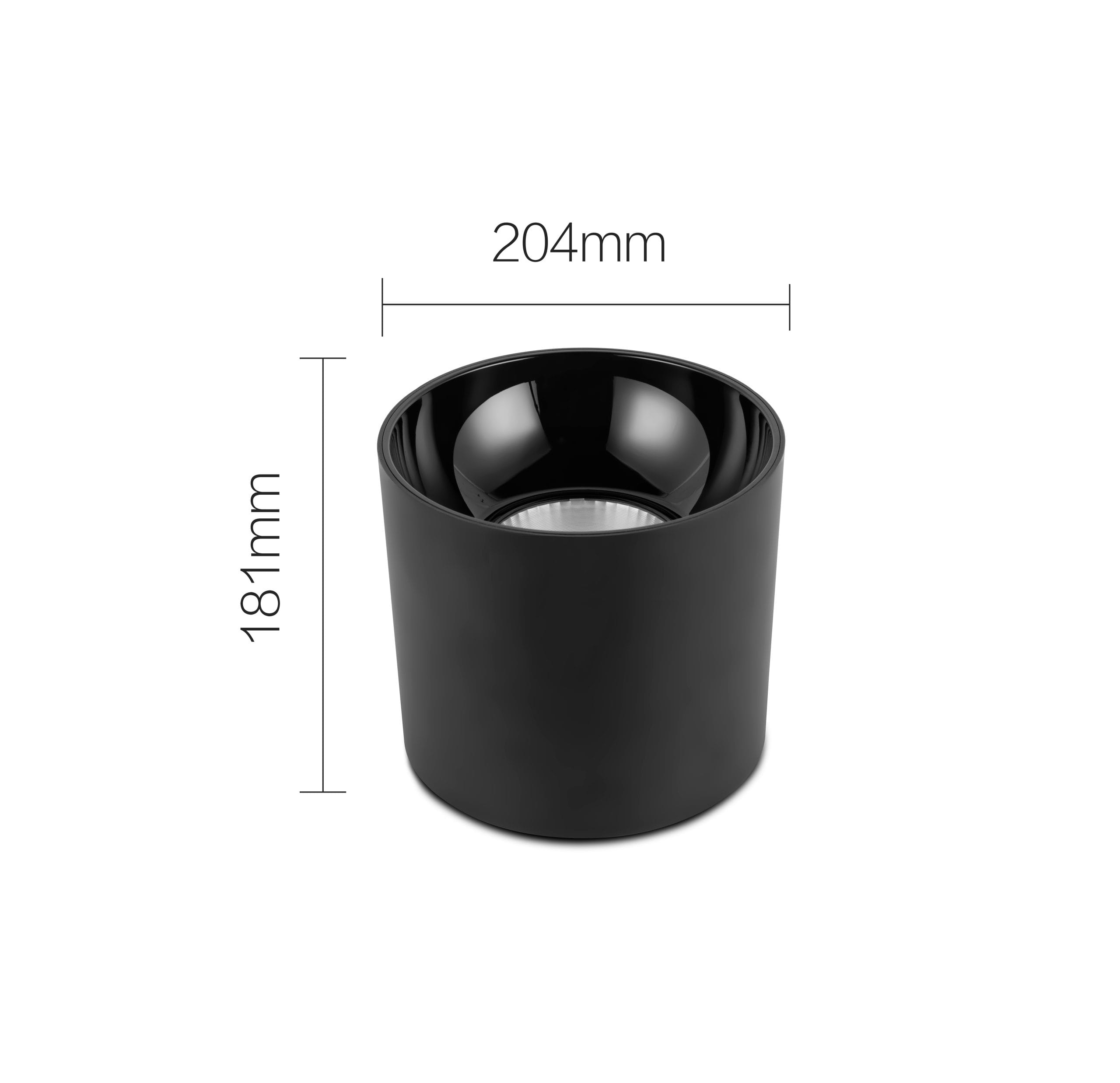

Product Size
