Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Features
The LEDTEK DL4006 is a high-performance ceiling surface mounted grille spotlight designed for exceptional local lighting. Featuring independent light sources, each equipped with individual optical lenses, this spotlight ensures precise beam control with adjustable angles of 15°, 24°, and 36°. Perfect for accent lighting or task-oriented illumination, it adds depth and focus to any space.
Customize your lighting design with a range of reflector cup colors, allowing seamless integration into various interiors. Compatible with 0-10V and DALI dimming systems, the DL4005 offers smooth brightness adjustment for energy efficiency and ambiance control. Ideal for both residential and commercial applications, this grille spotlight combines cutting-edge technology with sleek, modern design.
Elevate your lighting experience with the LEDTEK DL4006 – where functionality meets versatility.
Keywords: LEDTEK DL4006, Ceiling Surface Mounted Grille Spotlights, Independent Light Sources, Optical Lenses, 15° 24° 36° Beam Angles, Local Lighting, Reflector Cup Colors, 0-10V Dimming, DALI Dimming.
Model No | DL4006-8W | DL4006-12W | DL4006-15W | DL4006-20W |
|---|---|---|---|---|
| Wattage | 8W | 12W | 15W | 20W |
| Dimension(mm) | Φ89*H100 | Φ89*H100 | Φ109*H100 | Φ109*H100 |
| Input Voltage(V) | AC110-240V 50/60Hz | |||
| Light Source | Cree LED | |||
| CCT | 2700K-6500K | |||
| Luminous Flux (lm) ±5% | 800 | 1200 | 1500 | 2000 |
| CRI | >80(90 optional) | |||
| Beam Angle | 15°/24°/36° | |||
| LED Driver | External LED Driver | |||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Product Finishing |
| |||
| Materials of Optics | PMMA | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Installation | Ceiling Surface Mounted | |||
Available Lamp Housing Colors

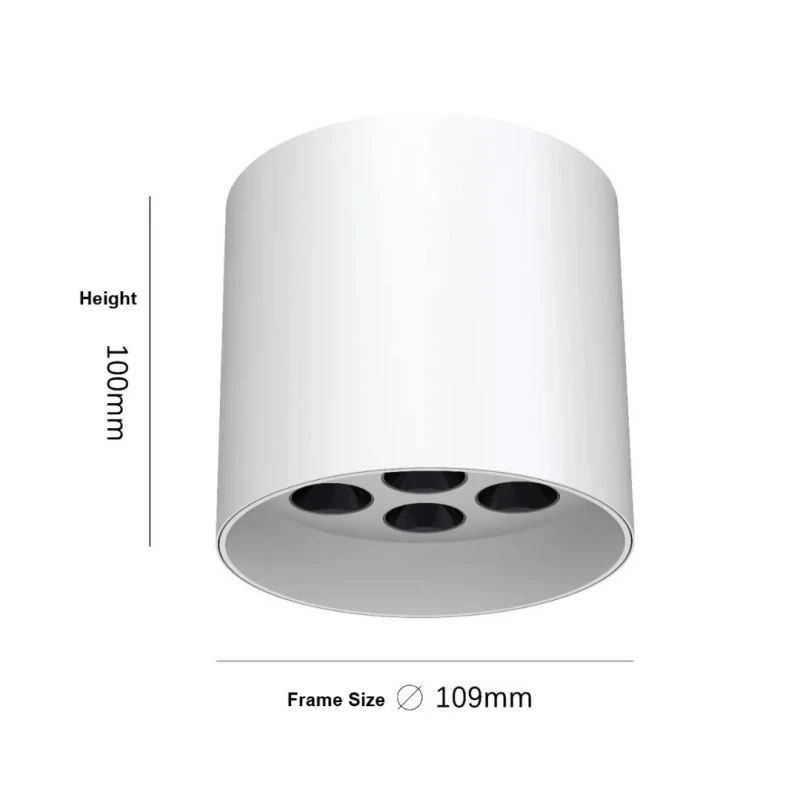

Product Size
