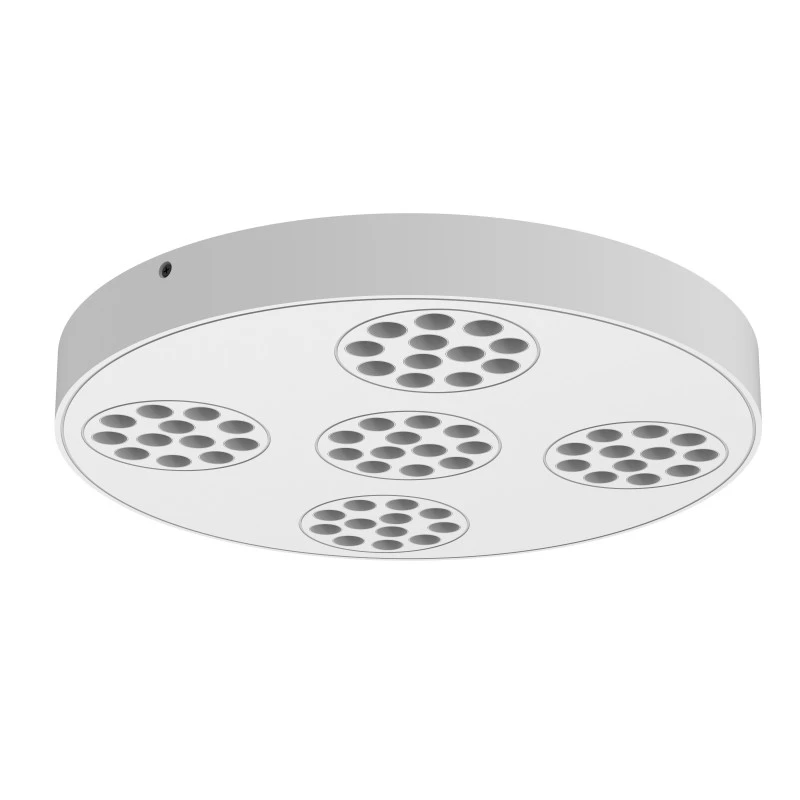

DL4009 Surface Mounted Round LED Downlight 18W-60W
Key Features:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
The LEDTEK DL4009 Series is a premium ceiling-mounted LED downlight designed for both functionality and aesthetics. Featuring an ultra-thin surface-mounted design, this downlight combines sleek modernity with superior performance. Its deep-reflector anti-glare design ensures that the light source remains concealed, effectively minimizing glare and creating a comfortable, eye-friendly lighting experience. The light is emitted without exposing the source, allowing for precise light control and a clean, minimalist appearance.
Available in a variety of lamp cup colors, the DL4009 Series offers flexibility to match diverse interior styles. The lamp body comes in two classic finishes—white and black—ensuring seamless integration into any decor. With multiple beam angle options, this downlight caters to various lighting needs, from focused task lighting to broad ambient illumination.
The circular design of the fixture ensures even light distribution, creating a soft and balanced lighting effect that enhances any space. Constructed from high-quality aluminum alloy using a one-piece molding process, the DL4009 Series boasts exceptional heat dissipation, ensuring long-lasting performance and reliability. Ideal for residential, commercial, or hospitality settings, the LEDTEK DL4009 Series delivers both style and substance in modern lighting solutions.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4009-18W | DL4009-24W | DL4009-30W | DL4009-36W | DL4009-48W | DL4009-50W | DL4009-56W |
|---|---|---|---|---|---|---|---|
| Wattage | 18W | 24W | 30W | 36W | 48W | 50W | 56W |
| Dimension(mm) | Φ300*H39 | Φ350*H39 | |||||
| Input Voltage(V) | AC110-240V 50/60Hz | ||||||
| Light Source | SMD LED | ||||||
| CCT | 2700K-6500K | ||||||
| Luminous Flux (lm) ±5% | 1800 | 2400 | 3000 | 3600 | 4800 | 5000 | 5600 |
| CRI | >80(90 optional) | ||||||
| Beam Angle | 15°/24°/36° | ||||||
| LED Driver | External LED Driver | ||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | ||||||
| Ingress Protection (IP Rating) | IP40 | ||||||
| Product Finishing |
| ||||||
| Materials of Optics | PMMA | ||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | ||||||
| Installation | Surface Mounted | ||||||
Product Size
