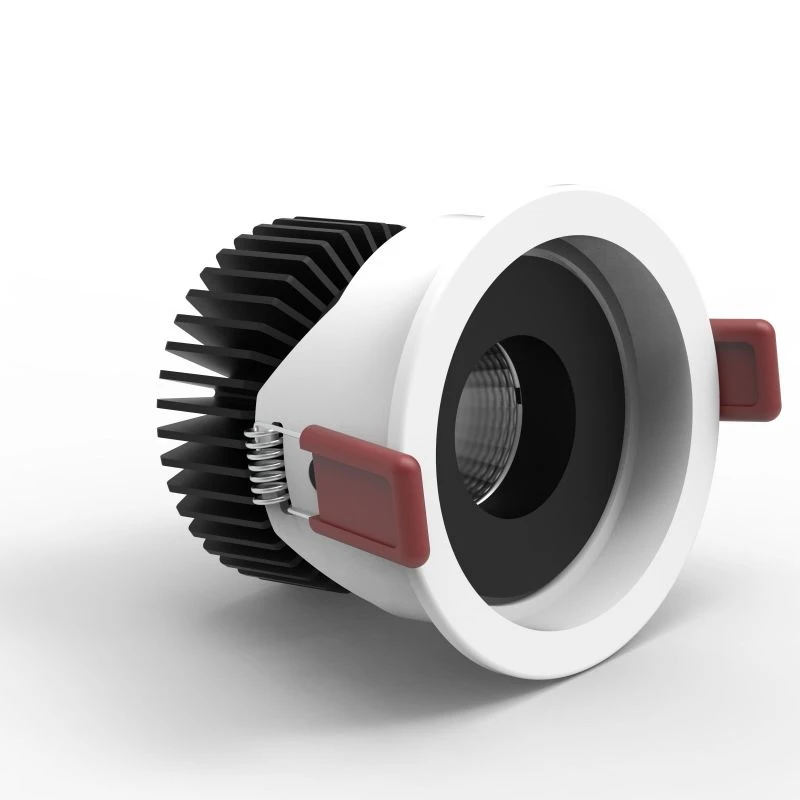

DL4055 Ultra Slim LED Downlight 5W-25W

Key Feature:

Ultra-Slim size recessed LED downlight
Deep reflector with circular hole light output design, to avoid direct light sources, resulting in ultra low UGR.
Wattage range: 5W-25W.
ADC12 aluminium die-cast housing provides very good heat dissipation.
CRI>80 (90 optional) light source, which restores the original colour of the object.
Dimming option:Non-dim,0/1-10V dimming or DALI dimming

Application:

It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.

LED Downlight Honeycomb reduce glare low UGR

Honeycomb Optional

Features

The LEDTEK DL4055 LED Down Light is designed for superior lighting performance with a small aperture light output and deep reflector cup, ensuring low glare and high visual comfort. Made from premium aluminum, it provides efficient heat dissipation, enhancing durability and stability.

Powered by Cree high-quality LED chips, the DL4055 offers a wide wattage range from 6W to 25W, catering to diverse lighting needs. Its precision-engineered optical lenses are available in 15°, 24°, and 38° beam angles, delivering focused and uniform illumination.

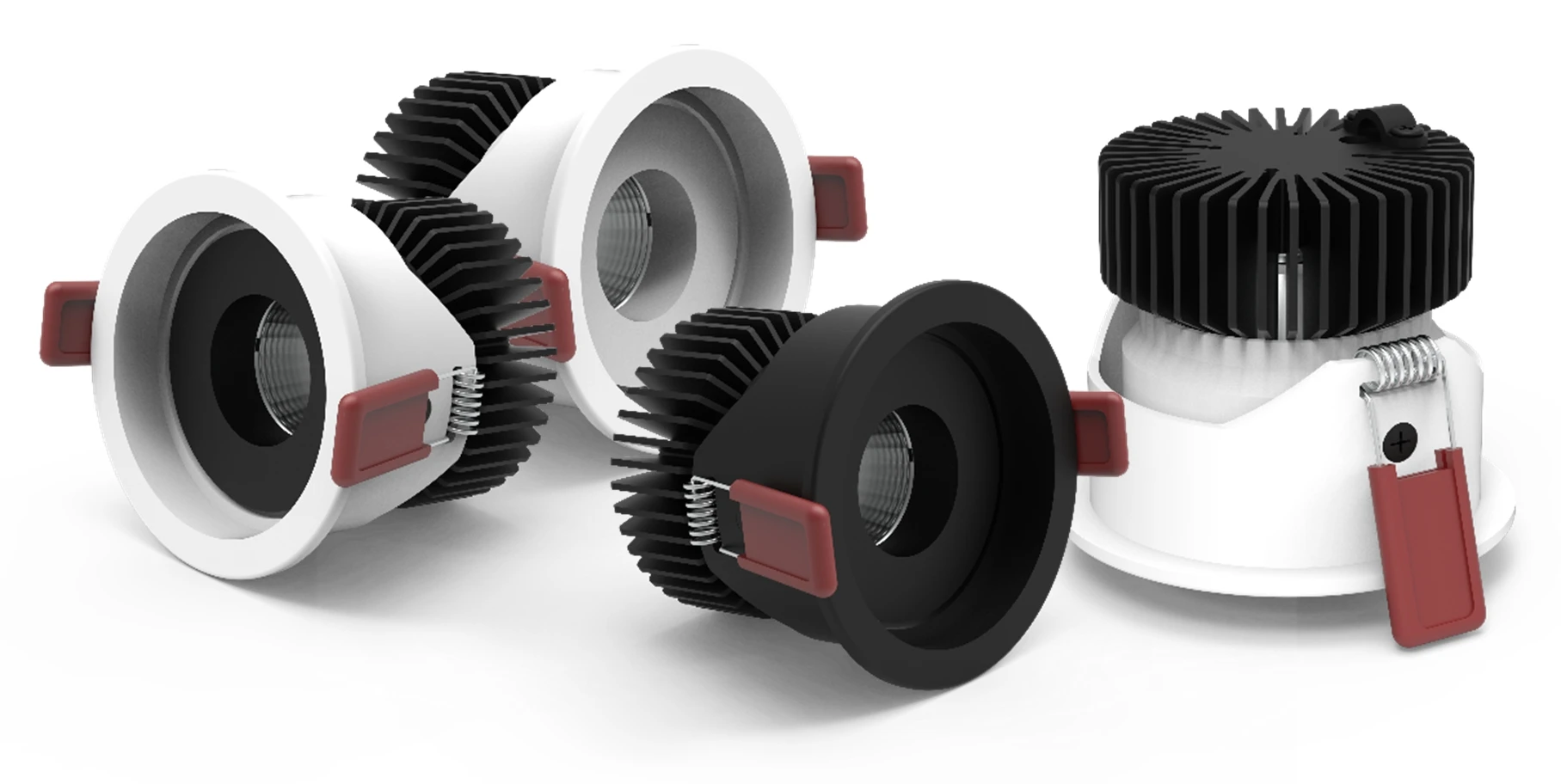

This LED downlight features a flicker-free LED driver, ensuring a stable and comfortable lighting experience. Available in white and black housing, with matching white or black reflectors, it offers versatile aesthetic combinations.

Backed by a 5-year warranty, the LEDTEK DL4055 is a reliable choice for residential, commercial, and hospitality lighting applications.

We can customize the wattage to meet your needs.

Looking for more LED downlight ? Explore our full collection here.

Product Specifications

Product Specifications

Model No	DL4055-5W	DL4055-7W	DL4055-10W	DL4055-12W	DL4055-16W	DL4055-20W	DL4055-25W
Wattage	5W	7W	10W	12W	16W	20W	25W

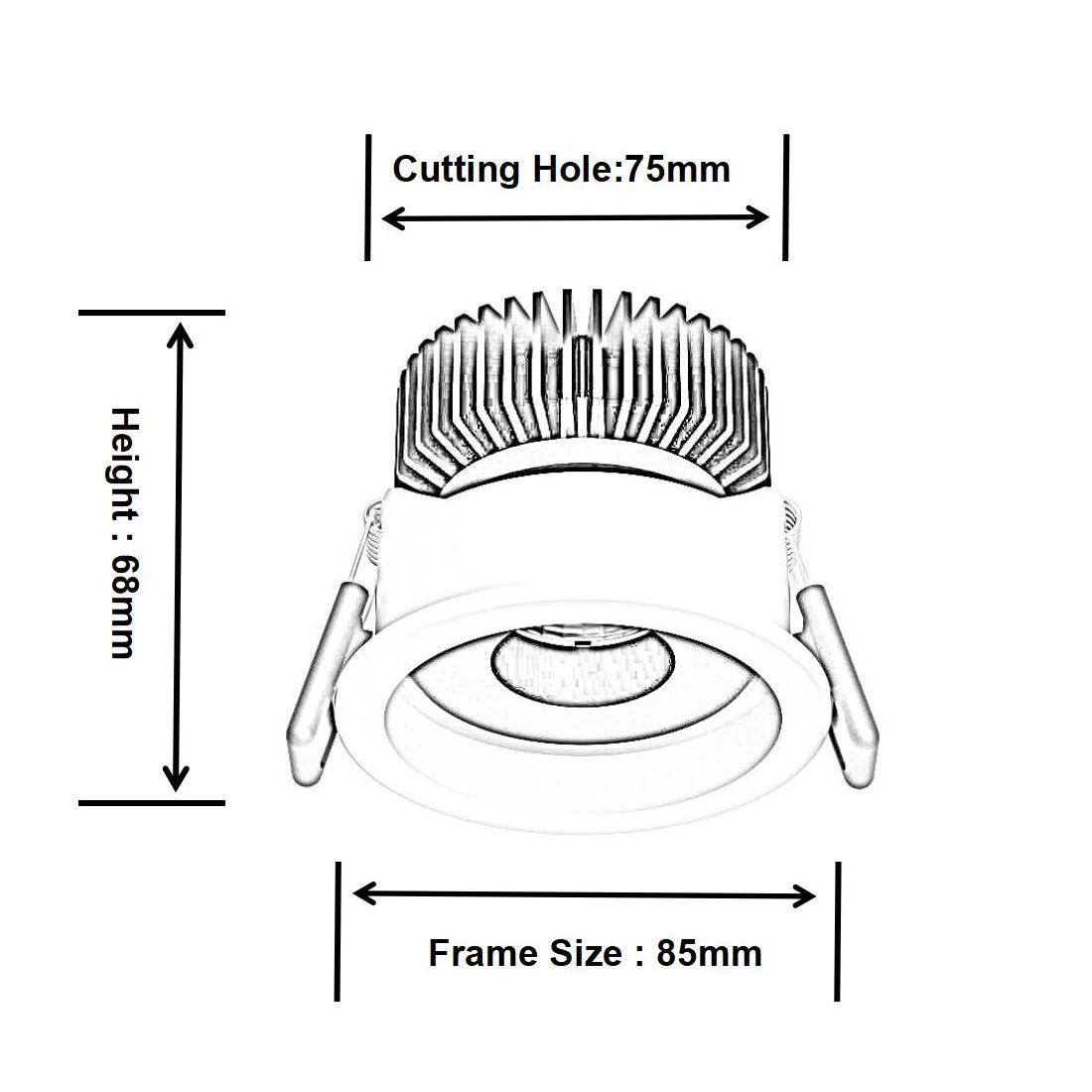

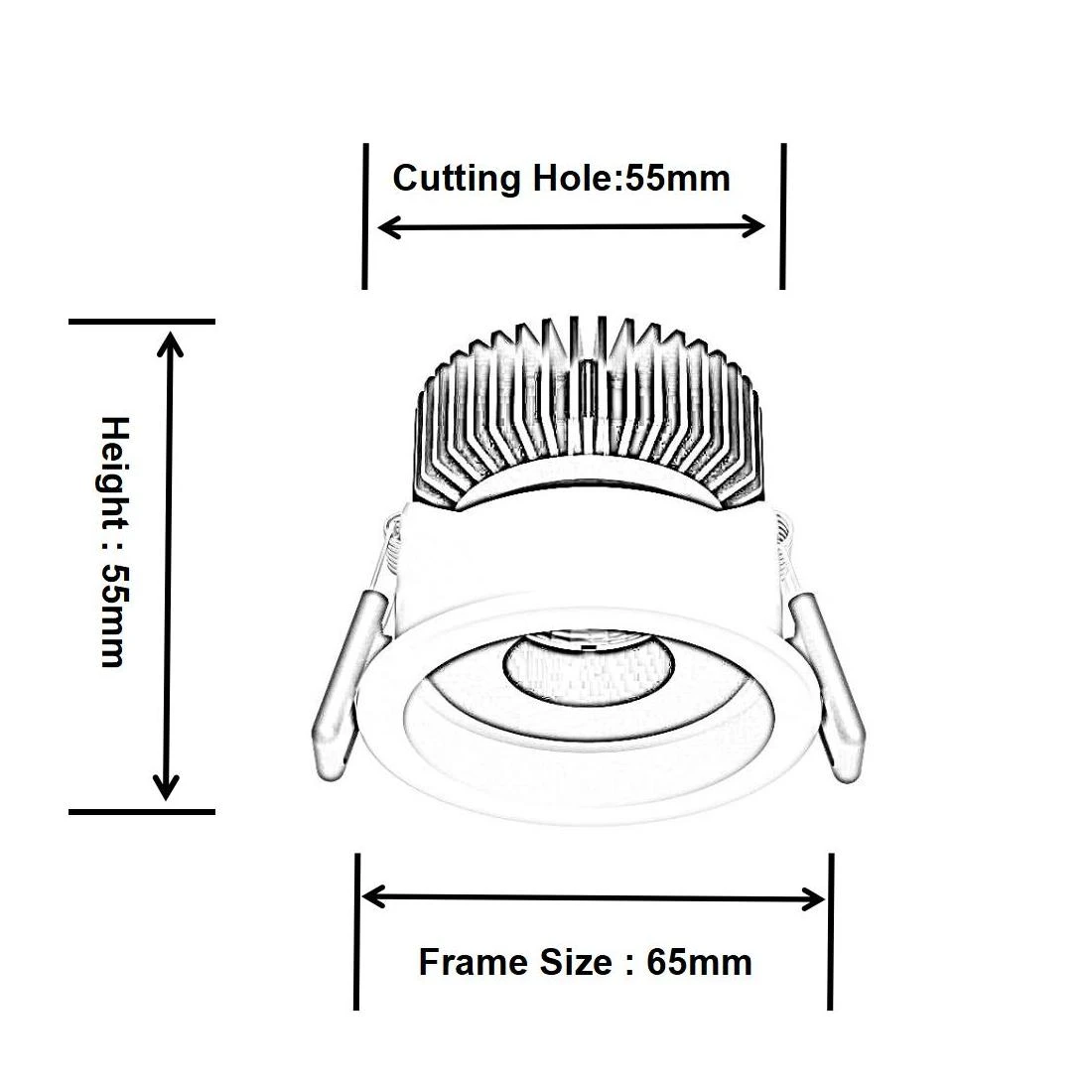

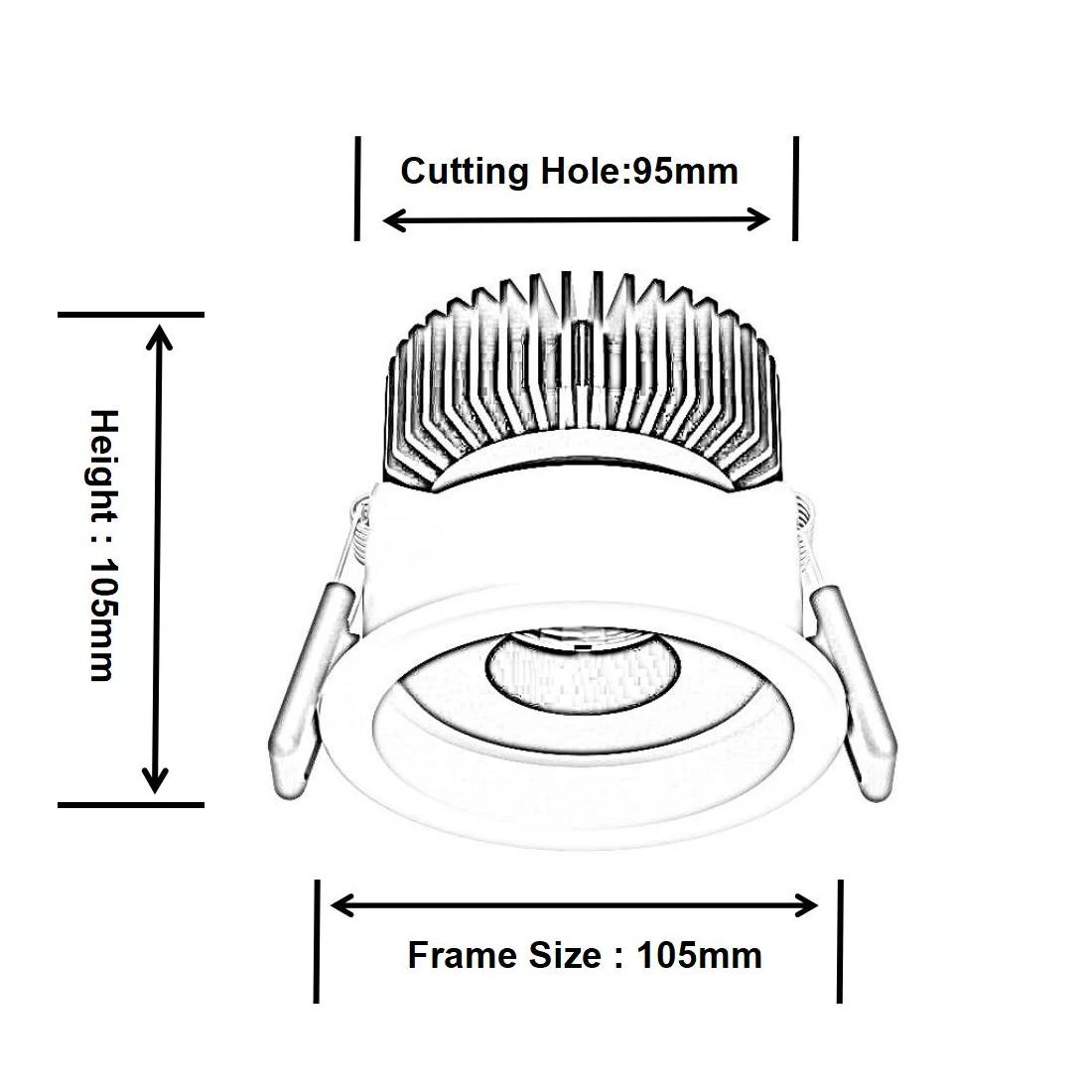

Dimension(mm)	Φ65*H55	Φ65*H55	Φ85*H68	Φ85*H68	Φ105*H95	Φ105*H95	Φ105*H95
Cutting Hole	Φ55	Φ55	Φ75	Φ75	Φ95	Φ95	Φ95
Input Voltage(V)	AC110-240V 50/60Hz
Light Source	Cree COB LED/Bridgelux COB LED
CCT	2700K-6500K
Luminous Flux (lm) ±5%	500	700	1000	1200	1600	2000	2500
CRI	>80 or 90 optional
Beam Angle	15°/24°/38°
LED Driver	External LED Driver
Dimming Option	Optional:0/1-10V dimming or Dali dimming
Ingress Protection (IP Rating)	IP54 (room side) \| IP20 (back side)
Product Finishing	Reflector Color: White/Bright
Materials of Optics	PC
Operating Temp. (℃ )	-20℃ ~55℃
Installation	Recessed
