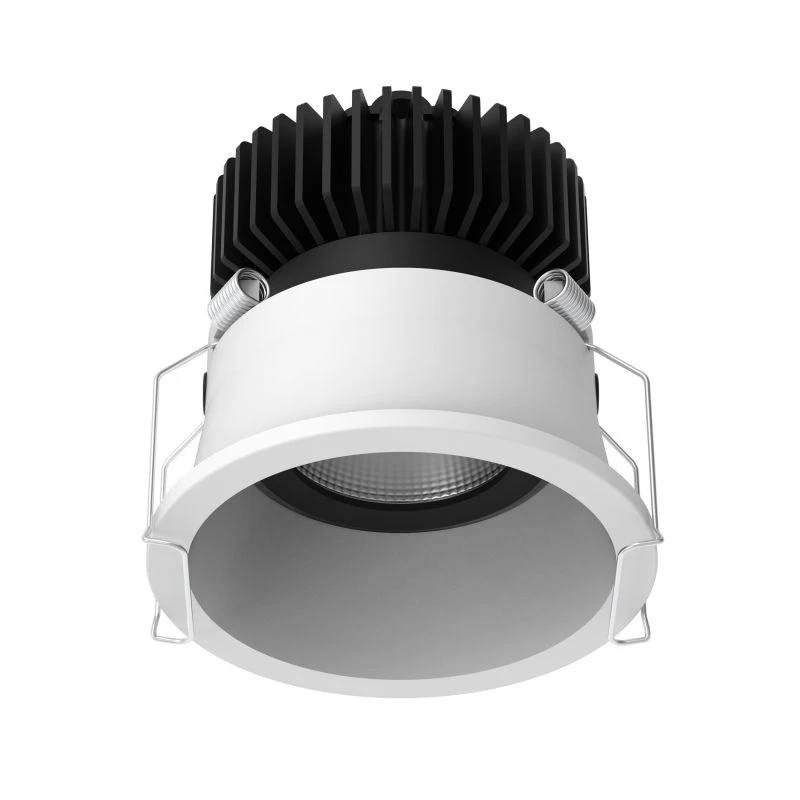

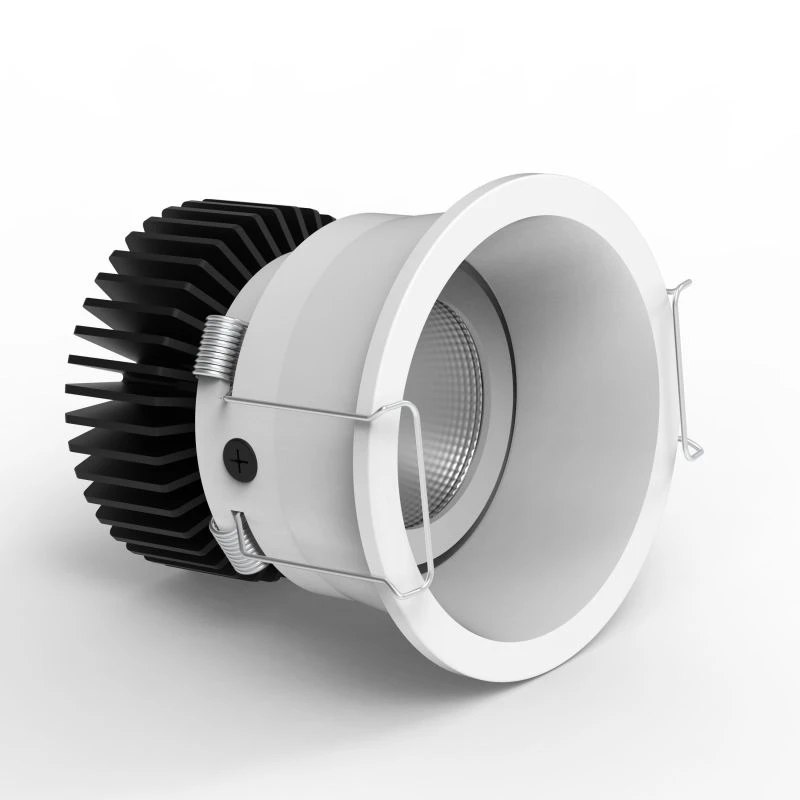

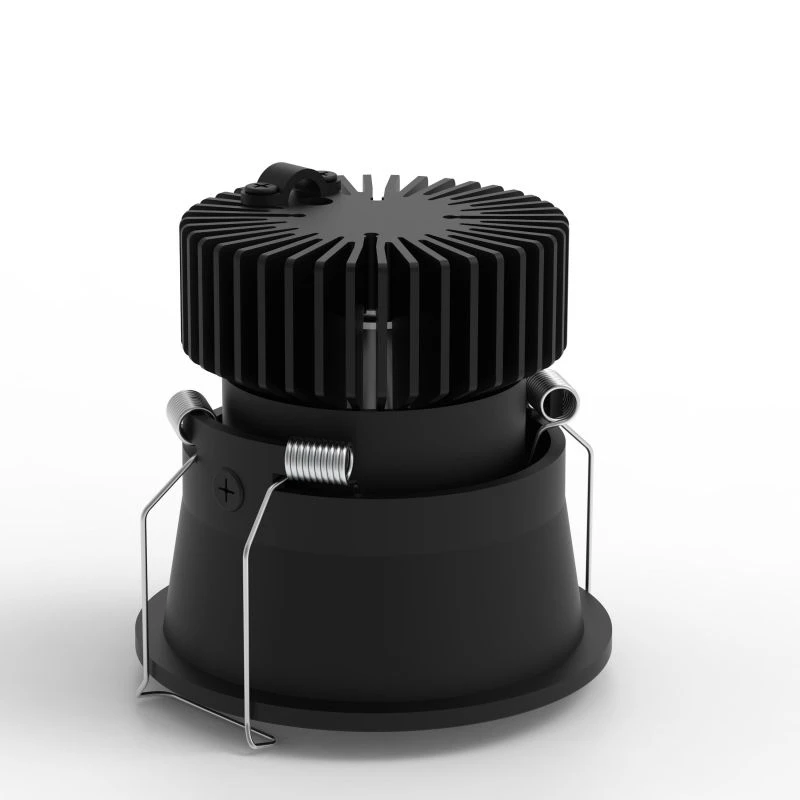

DL4056 Narrow Trim LED Downlight 5W-25W
Key Feature:
Application:
It is designed for general lighting applications in office, supermarket, shop, school, hotel etc.
Honeycomb Optional
Features
LEDTEK DL4056 LED Down Light is designed for superior lighting performance with narrow trim and deep reflector cup for optimal anti-glare control. For enhanced visual comfort, an optional honeycomb is available to further reduce glare.
Crafted from premium aluminum, this downlight ensures efficient heat dissipation, prolonging lifespan and maintaining performance. It features high-quality Cree LED chips, delivering 5W to 25W of power. Multiple beam angle options—15°, 24°, and 38°—allow for customized lighting solutions. The flicker-free LED driver ensures stable illumination, reducing eye strain.
Available in white and black finishes, with matching reflector cups, the DL4056 offers a variety of stylish combinations to fit any interior. Backed by a 5-year warranty, it is a durable and reliable choice for residential and commercial applications.
We can customize the wattage to meet your needs.
Looking for more LED downlight ? Explore our full collection here.
Model No | DL4056-5W | DL4056-7W | DL4056-10W | DL4056-12W | DL4056-16W | DL4056-20W | DL4056-25W |
|---|---|---|---|---|---|---|---|
| Wattage | 5W | 7W | 10W | 12W | 16W | 20W | 25W |
| Dimension(mm) | Φ70*H69 | Φ70*H69 | Φ90*H78 | Φ90*H78 | Φ112*H116 | Φ112*H116 | Φ112*H116 |
| Cutting Hole | Φ60 | Φ60 | Φ75 | Φ75 | Φ95 | Φ95 | Φ95 |
| Input Voltage(V) | AC110-240V 50/60Hz | ||||||
| Light Source | Cree COB LED/Bridgelux COB LED | ||||||
| CCT | 2700K-6500K | ||||||
| Luminous Flux (lm) ±5% | 500 | 700 | 1000 | 1200 | 1600 | 2000 | 2500 |
| CRI | >80 or 90 optional | ||||||
| Beam Angle | 15°/24°/38° | ||||||
| LED Driver | External LED Driver | ||||||
| Dimming Option | Optional:0/1-10V dimming or Dali dimming | ||||||
| Ingress Protection (IP Rating) | IP54 (room side) | IP20 (back side) | ||||||
| Product Finishing | Reflector Color: White/Bright | ||||||
| Materials of Optics | PC | ||||||
| Operating Temp. (℃ ) | -20℃ ~55℃ | ||||||
| Installation | Recessed | ||||||

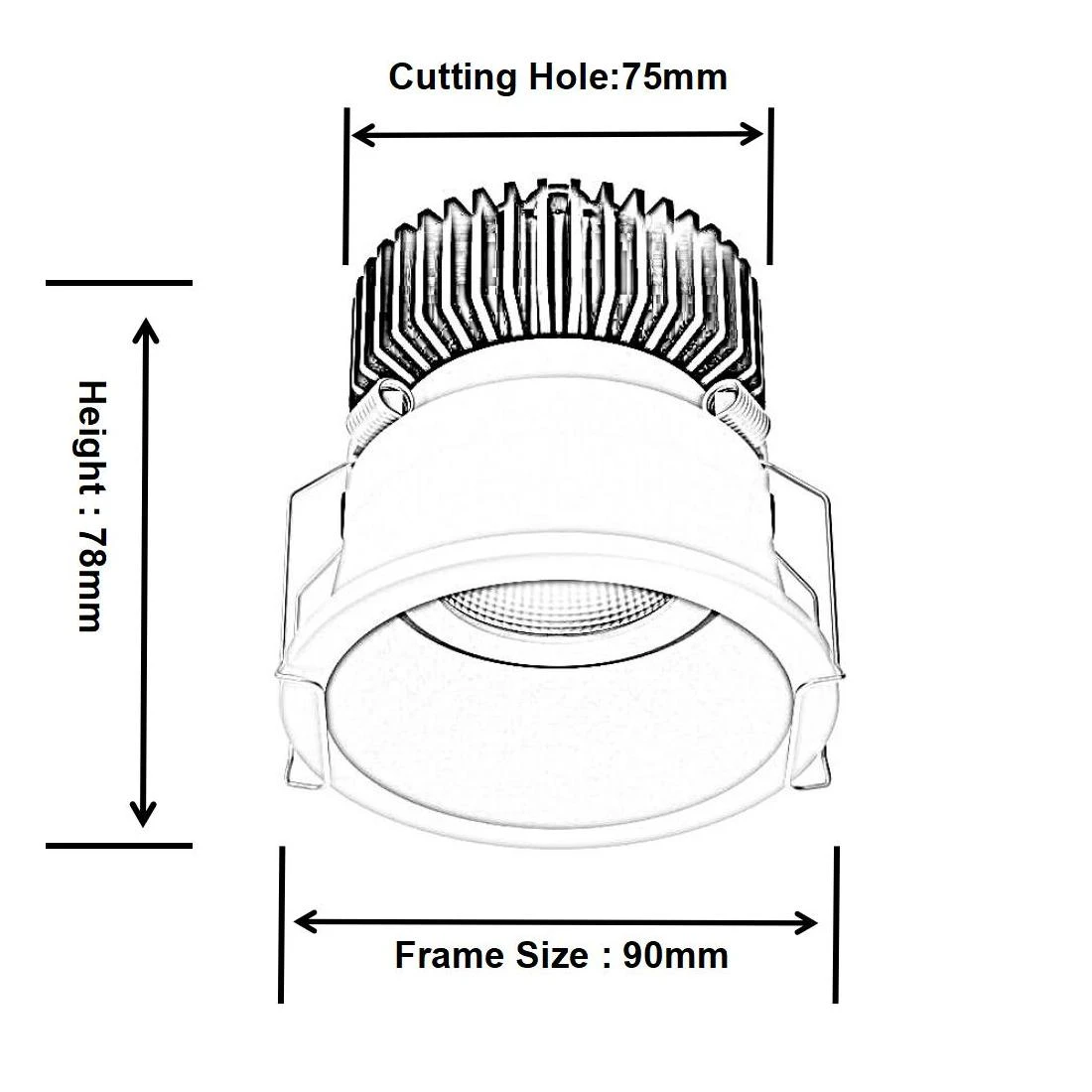

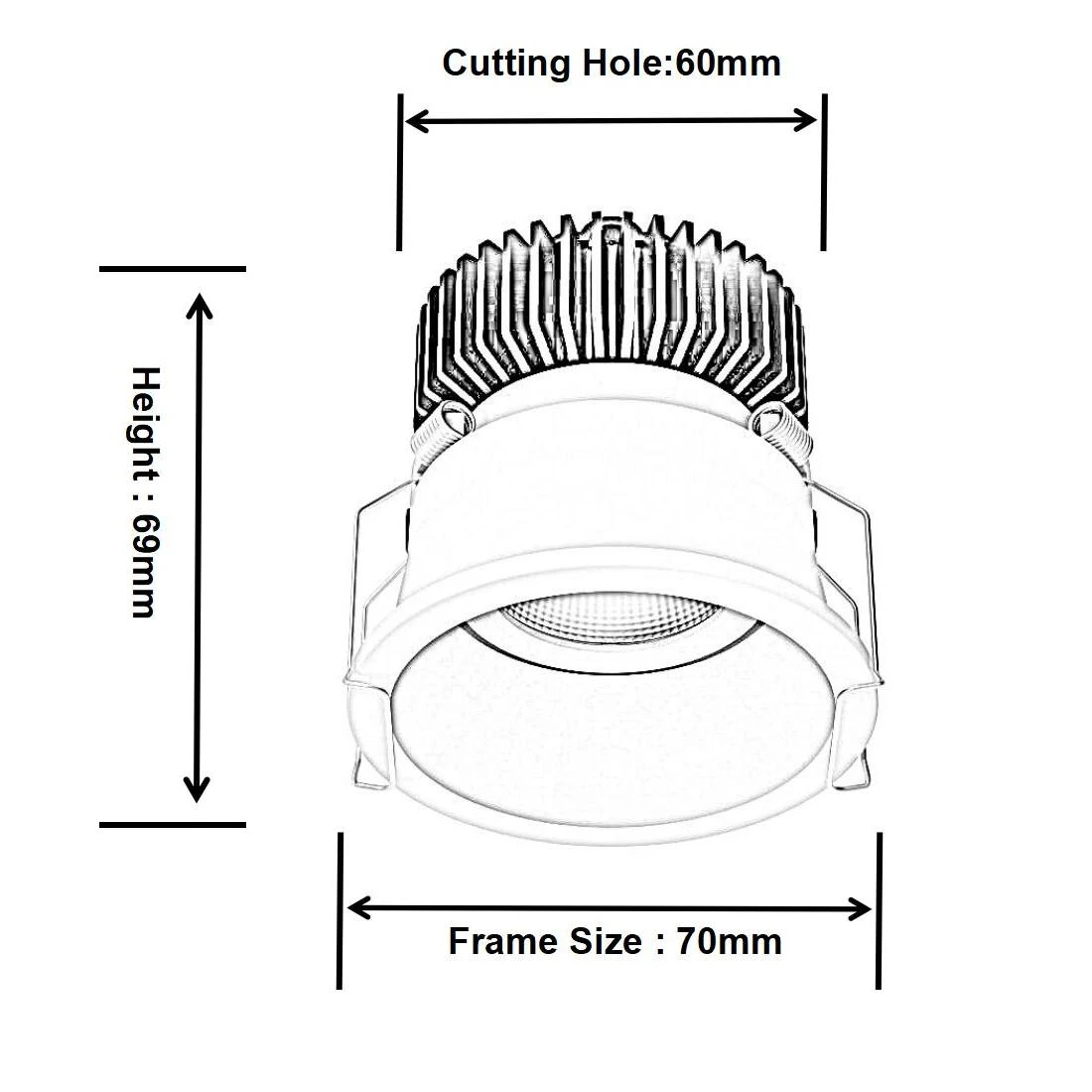

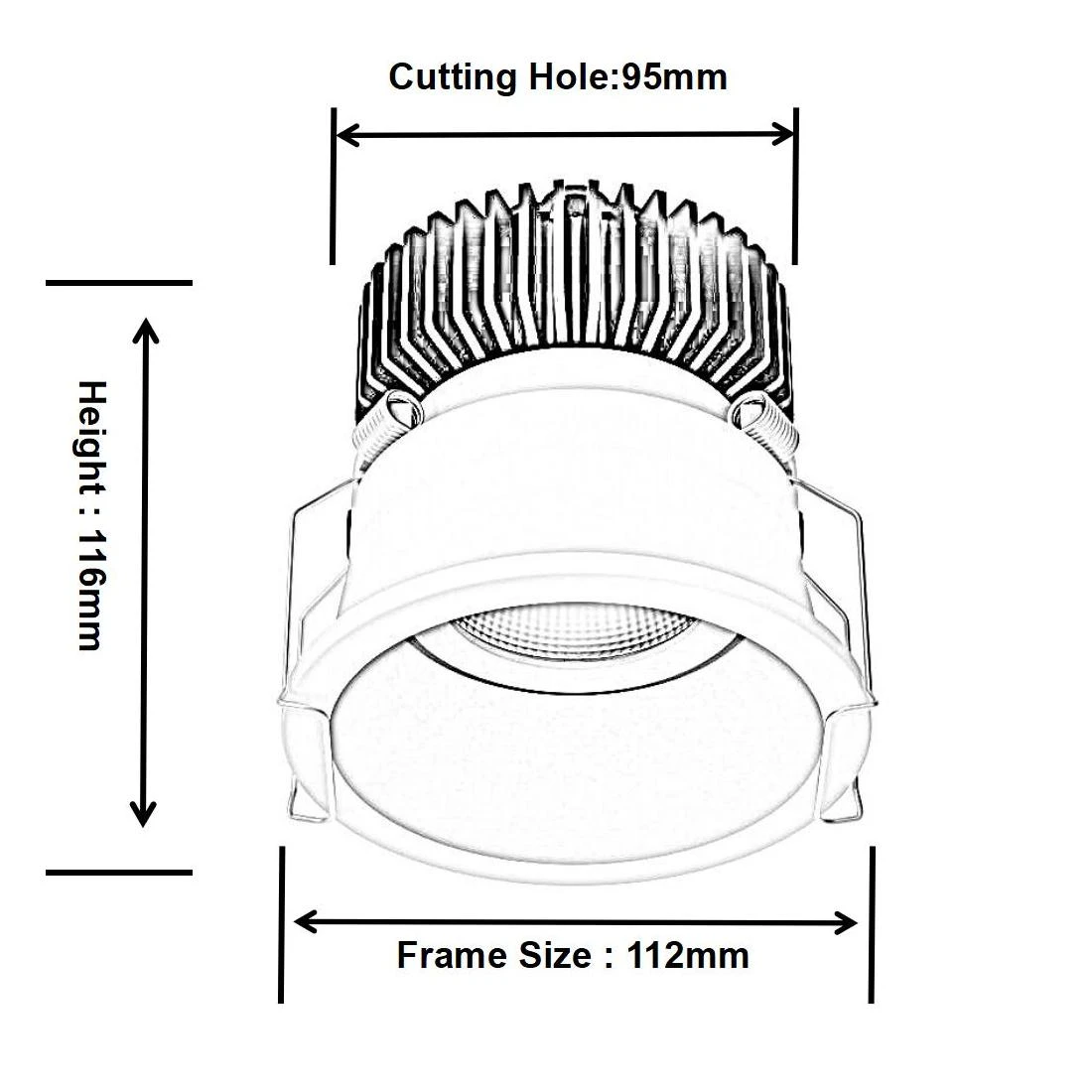

Product Size:
