LED Linear Light LN5075 16W-60W

  • LED Linear Light LN7050 16W-60W
  • LED Linear Light LN7050 16W-60W
  • LED Linear Light LN7050 16W-60W

  • 50mmX75mm(Width * Height)

  • High lumen efficiency, >100lm/W.

  • SMD 2835 LEDs are super bright, high intensity and low power consumption

  • CRI>80 (>90 optional)

  • Sizes:600mm/1200mm/1500mm. (Can be OEM by different length)

  • Installation way: Surface mounted/ suspended.

  • Internal flicker free driver.

Applications:

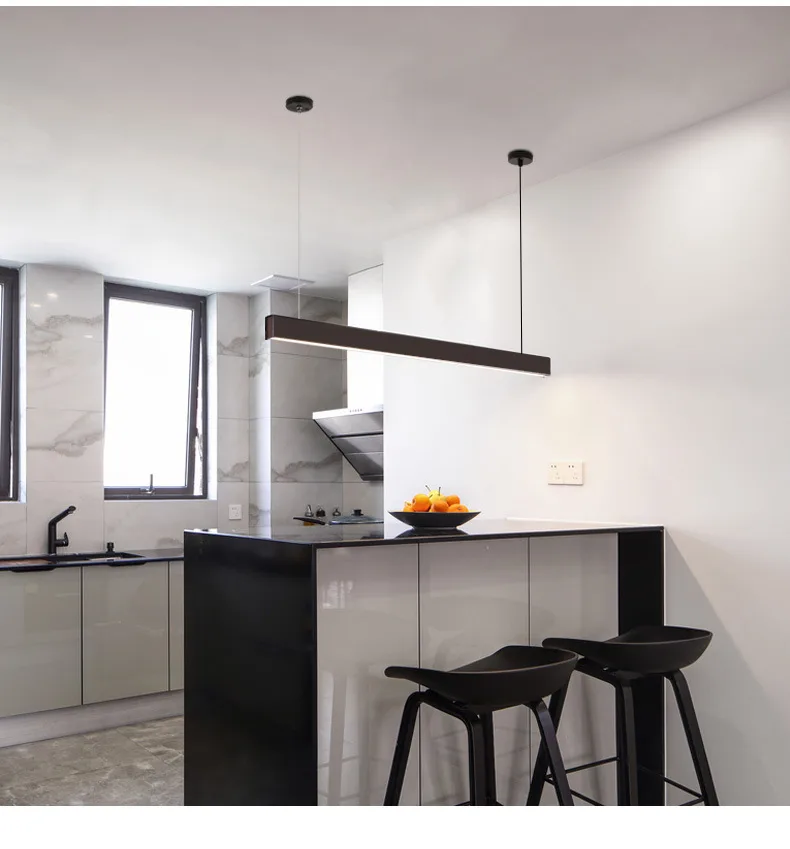

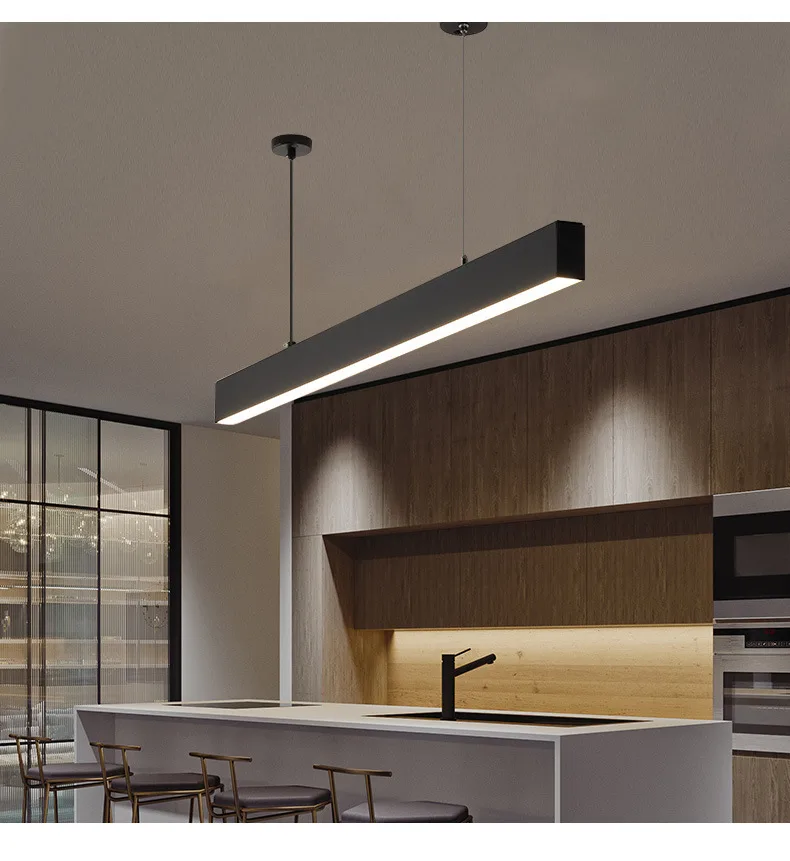

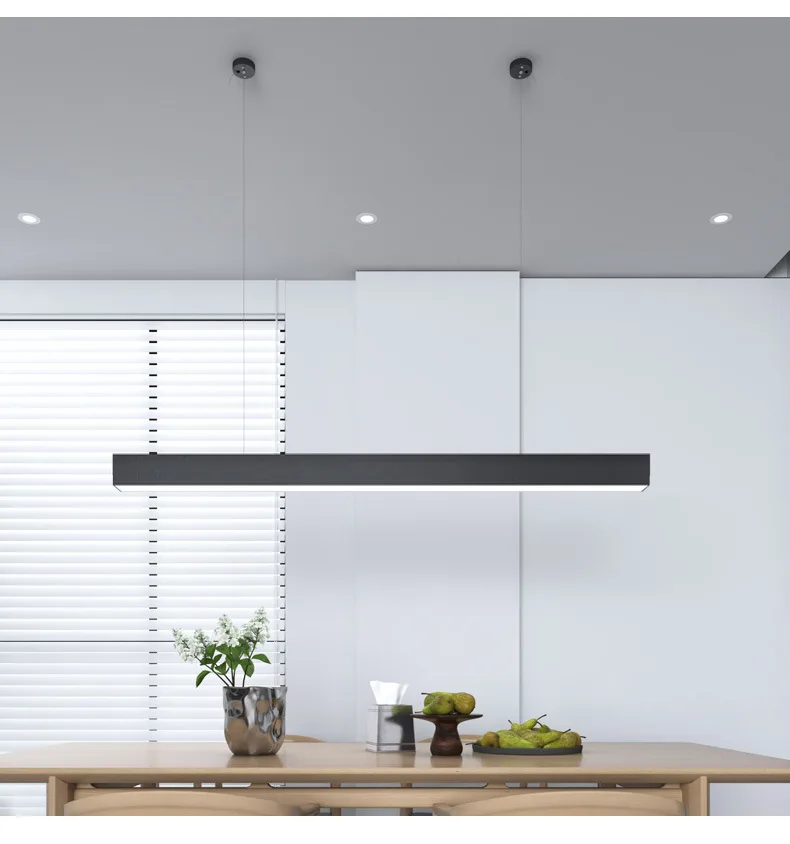

Suitable for home, office and any appropriate indoor space

Features

LN5075 Series Linear Light is an Eco linear design. The lamp adopts high lumen 2835SMD light source, the high transmittance PS cover leads a high light efficiency and uniform light output. Besides, it is also a quick-install design, fast connector, loop in/out design, snap-on installation, which is highly saved mount time and better for maintenance

Length and power can be customized according to customer requirements

Model No.LN5075-900-16WLN5075-1200-30WLN5075-1200-40WLN5075-1500-50WLN5075-1800-60W
Wattage16W30W40W50W60W
Dimension(mm) LXHXW900X50X751200X50X751200X50X751500X50X751800X50X75
Input VoltageAC110-240V 50/60HZ
Dimming Option0-10V/DALI2
Luminous1600lm3000lm4000lm5000lm6000lm
CCT2700-6500K
CRI>80(90/95 available)
Beam Angle120°
Materials of HousingAluminum
Materials of OpticsPS
IP RatingIP20/IP54
Operating Temp. (C )-20°~40°

Product Size

LED Linear Light
LED Linear Light
LED Linear Light
LED Linear Light
