150lm/W LED Panel Light 25W-40W

  • LED Panel Light

  • Save 25% energy compare to normal LED panel light

  • Uniform light effect with optic lens.

  • Anti-glare design,UGR<19

  • Integrated iron plate design provides excellent thermal management.

  • Integrated iron plate design provides excellent thermal management.

  • CRI>80 (>90 optional)

  • Sizes:595mmX595mm/620mmX620mm/295mmX1195mm/595mmX1195mm

  • Installation: Surface mount, Pendant, Recessed.

  • Built-out driver

Applications:

Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc. Other situations: hospital, laboratory, dust-free workshop etc.

Features

PL101Series LED panel is a direct lighting product with 150lm/W efficiency. It makes full use of all light and is morecost effective compared with side lighting LED panel light. Adopt optical lens to offer a uniform light effect.With integrated iron plate,providing great thermal management.



Model No.PL101-30120-25PL101-30120-36PL101-6060-25PL101-6060-36PL101-6262-25PL101-6262-36PL101-60120-36PL101-60120-40
Wattage25W36W25W36W25W36W36W40W
Dimension(mm) LXHXW295X1195X34595X595X34620X620X34595X1195X34
Input VoltageAC100-240V 50/60Hz
Dimming Option0-10V/Dali Dimming
Luminous3750lm5400lm3750lm5400lm3750lm5400lm5400lm6000lm
CCT2700K-6500K
CRI>80(>90 optional)
Beam Angle120deg
Materials of HousingAluminum(Frame)+Iron(BackPlane)
Materials of OpticsPMMA(Lens)+PS(Diffuser)
IP RatingIP40
Operating Temp. (C )-20℃ ~50℃

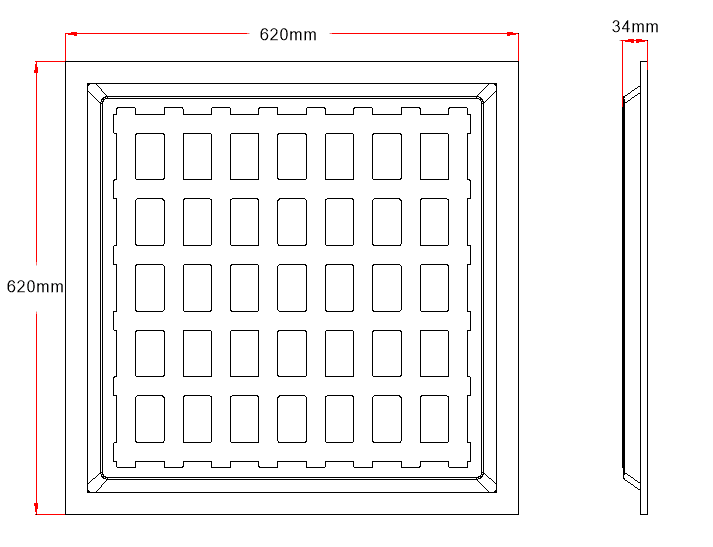

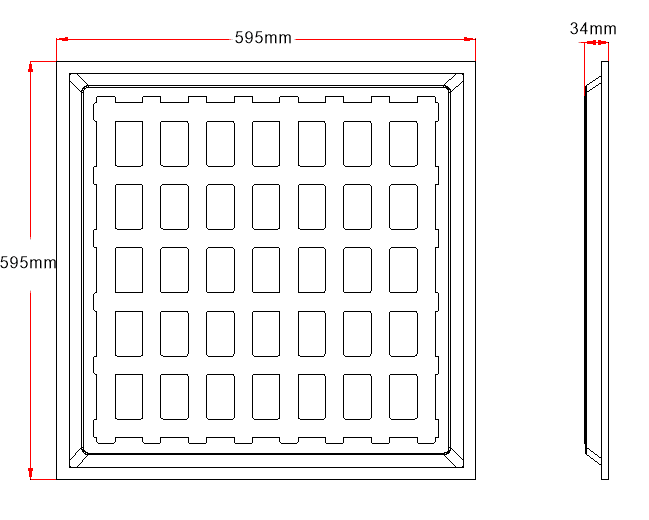

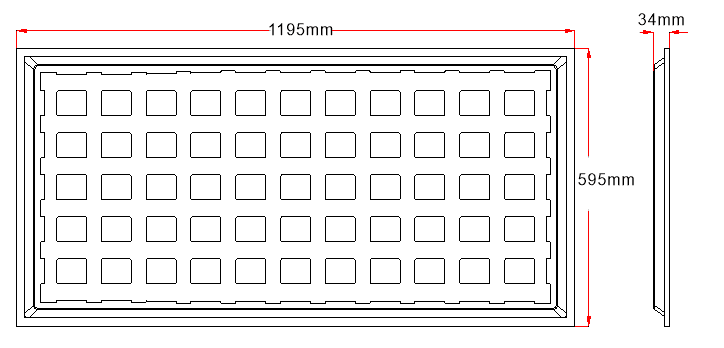

Product Size
