SolarSense Pro Series-ST860 LED Street Light
Features
The LEDTEK SolarSense Pro™ ST860 is a cutting-edge all-in-one solar street light engineered for optimal performance and energy efficiency in outdoor lighting applications. This integrated system combines a high-performance monocrystalline silicon solar panel, MPPT (Maximum Power Point Tracking) charge controller, LiFePO₄ (Lithium Iron Phosphate) battery, and a PIR (Passive Infrared) motion sensor into a single compact unit.
Key Features:
Integrated Design: The SolarSense Pro™ ST860 consolidates all essential components into one unit, simplifying installation and reducing maintenance requirements.
MPPT Charging Technology: Utilizing MPPT technology, the system ensures optimal energy conversion from solar panels, achieving charging efficiencies exceeding 90%.
Advanced PIR Motion Sensor: The PIR sensor detects human presence with a wide detection range, enabling intelligent lighting control. Upon detecting motion, the light gradually brightens to full intensity, and after 1 minute of inactivity (customizable), it dims to a low brightness, conserving energy while maintaining adequate illumination.
Enhanced Anti-Interference Performance: Through extensive design optimization, LEDTEK has achieved an exceptionally low false activation rate. The system effectively ignores environmental factors such as wind, rain, and moving foliage, ensuring reliable operation even in challenging conditions.
Long-Lasting LiFePO₄ Battery: The ST860 is equipped with a new LiFePO₄ battery, known for its safety, long cycle life, and high reliability. This battery ensures extended service life and high performance.
Design Optimization: Extensive design optimizations have been implemented to minimize false triggers, achieving an exceptionally low false activation rate.
Applications:

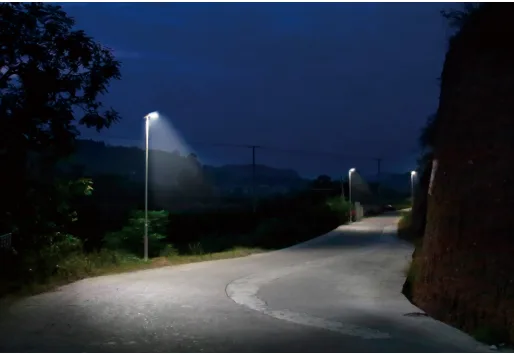

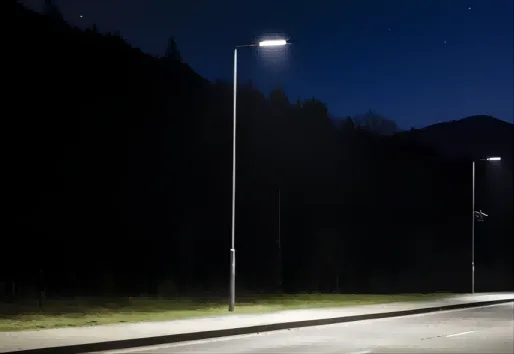

The SolarSense Pro™ ST860 is ideal for various outdoor settings, including urban streets, parks, parking lots, and residential areas. Its intelligent lighting control and energy efficiency make it a reliable solution for sustainable urban lighting.
In summary, the LEDTEK SolarSense Pro™ ST860 offers a comprehensive, energy-efficient, and environmentally friendly lighting solution, combining advanced technologies to meet the demands of modern outdoor illumination.
| Model No | ST860-SL20W-10 | ST860-SL35W-15 | ST860-SL35W-20 | ST860-SL50W-30 |
|---|---|---|---|---|
| Solar panel module capacity | 20W | 35W | 35W | 50W |
| Solar Cell | High Efficiency Monocrystalline Silicon | |||
| Battery capacity | 12AH/6.4V | 15AH/6.4V | 18AH/6.4V | 24AH/6.4V |
| Battery type | Lithium Ferro Phosphate LiFePo4 | |||
| Lumen Efficacy | 170lm/W | |||
| Lamp Power | 10W | 15W | 20W | 30W |
| LED | LED SMD 2835 | |||
| CRI | >70 | |||
| Beam Angle | 140°X70° | |||
| Color temperature | 3000K-7000K | |||
| PIR range | Install Height:5-6mtrs above the ground/Detection Width: 8-12mtrs | |||
| Charging electronics | Integrated MPPT charger with driver | |||
| Driver efficiency | >90% | |||
| Switch for On-Of | Provided | |||
| Charging and discharging indicator | Provided | |||
| Sensor indicator | Provided | |||
| Adjustable tilt angle | Adjustable | |||
| IP/IK Rating | IP66/IK10 | |||
| Prodcut Size(mm) | 552*282*130 | 657*325*130 | 657*325*130 | 860*350*130 |

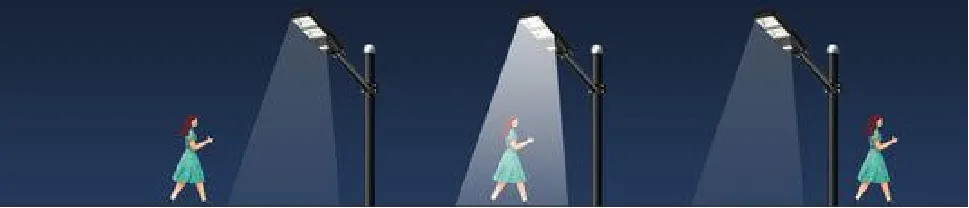

PIR Motion Sensor Function
The fixture maintains 10% brightness when no one enters the detection range.
The fixture maintains 100% brightness when no one enters the detection range.
The fixture maintains 10% brightness for one minute after someone leaves the detection range.
Product Size:

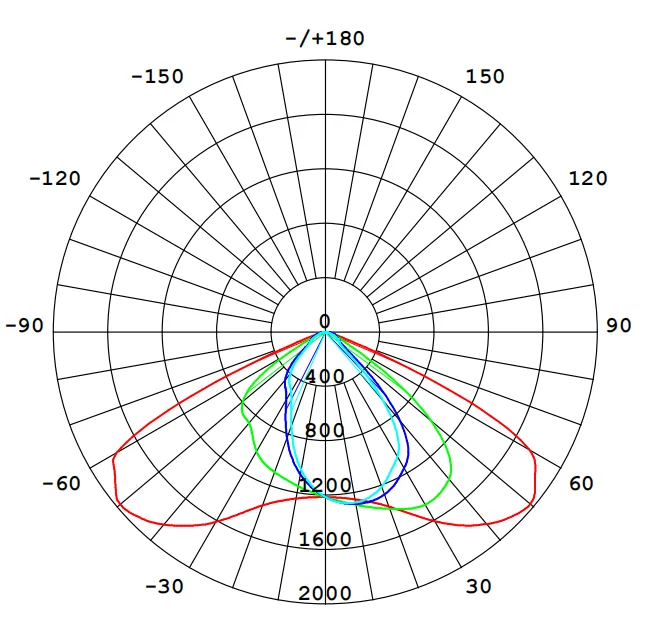

Light Distribution Curves 140°X 70°:
