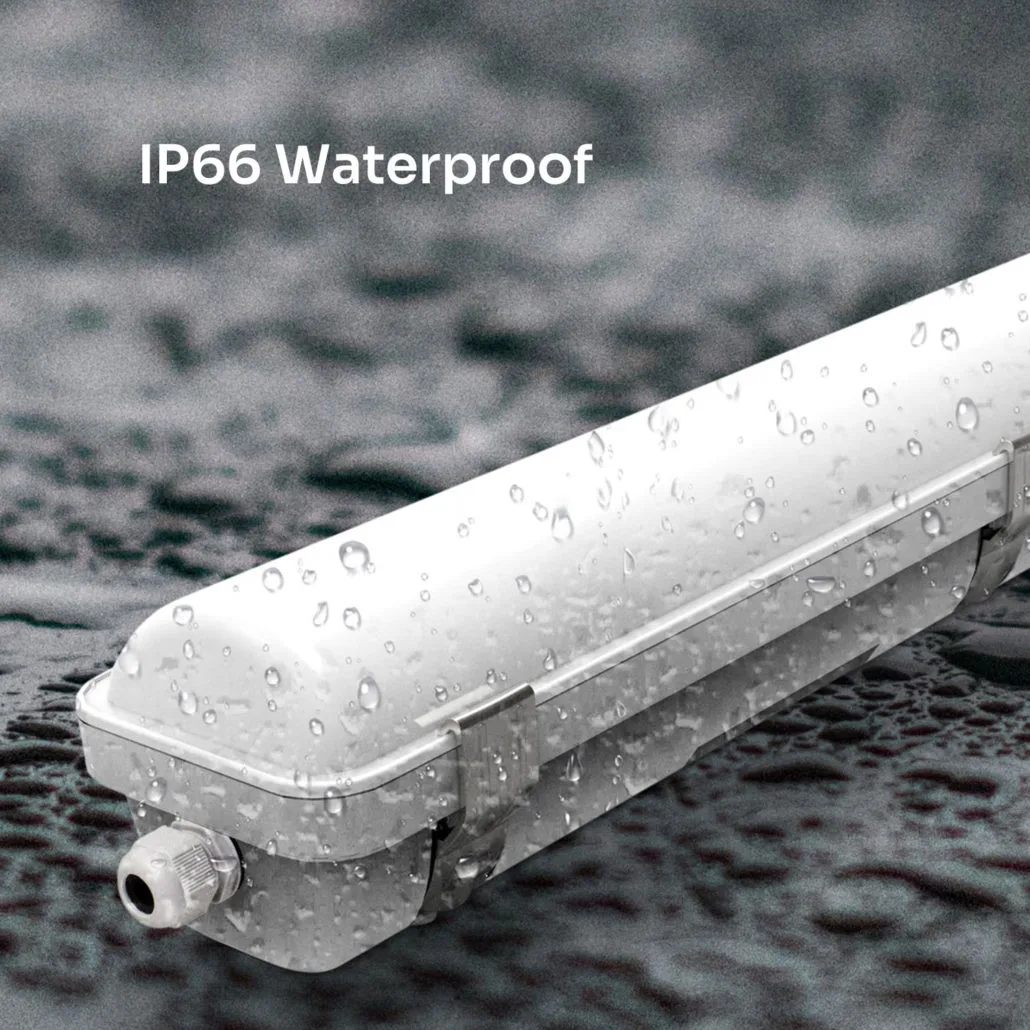

IP66 LED Vapor proof Light With MicroWave Sensor
Features
LEDTEK’s IP66 LED Vapor proof Light are an ideal solution for both wet and dry locations used in many different commercial and residential environments, such as car washes, warehouses, parking garages, stairwells, pool areas, etc. They are available in lengths from 2ft 4ft 5ft with both surface mount and suspension mount options.

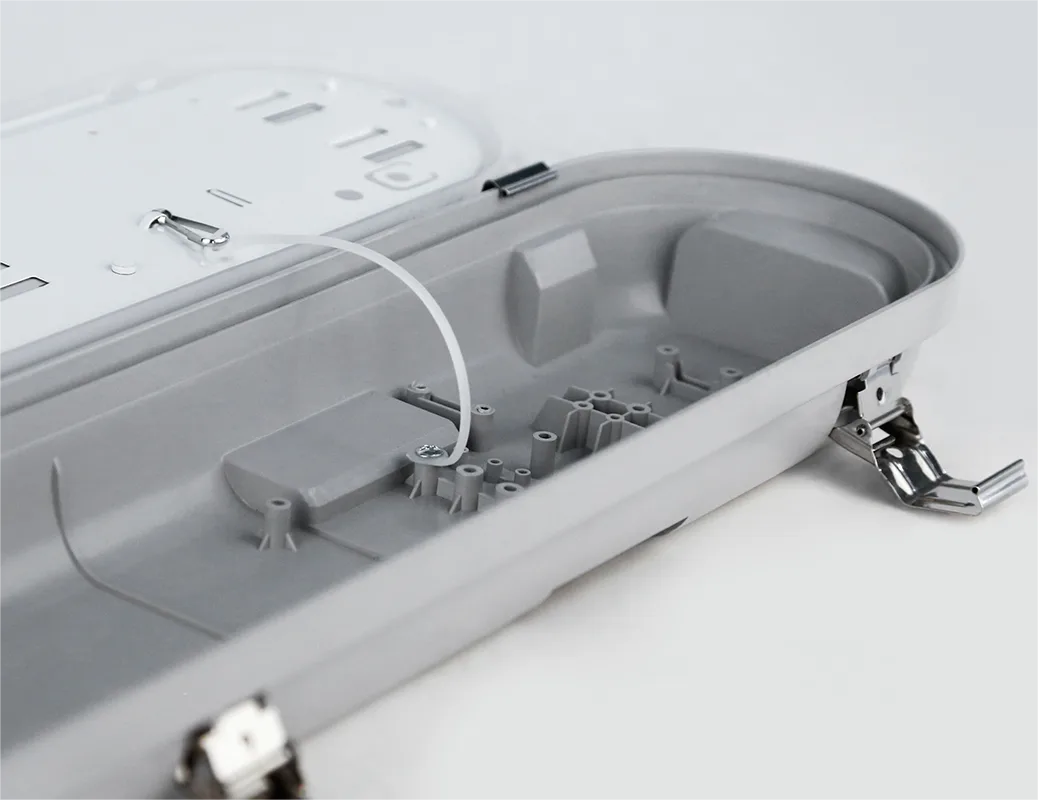

LEDTEK’s IP66 LED Vapor proof Light is waterproof, dust, corrosion and pressure-proof, it is made by PC material housing with 94V2 fire rated protection, safe for many different application.
Efficiency is up to 130lm/w, IK08 impact protection, life span is up to L70>54,000 hours, a 50W 150cm LED Vapor proof Light can replace a 2x60W fluorescent tube, the return on investment is less than one year.
The build-in microwave motion sensor can control the brightness of the LED Vapor proof light by detect the movement, make it much more energy saving than normal LED vapor proof light.
| Model No | VP2-12W | VP2-16W | VP2-20W |
|---|---|---|---|
| Wattage | 12W | 16W | 20W |
| Dimension | 600*125*88 (mm) | 600*125*88 (mm) | 600*125*88 (mm) |
| Input Voltage | AC220-240V 50/60Hz | ||
| Lumen Efficacy | 130-140lm/W | ||
| Luminous | 1560-1680lm | 2080-2240lm | 2600-2800lm |
| CCT | 3000-6500K | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| Detection Range | Install Height:6-8Mtrs/Detection Range:Radius 3-5Mtrs | ||
| Power Factor | >0.9 | ||
| IP Grade | IP66 | ||
| Working Temp | -20˚-45˚C | ||
| Model No | VP4-18W | VP4-20W | VP5-25W |
|---|---|---|---|
| Wattage | 18W | 20W | 25W |
| Dimension | 1200*125*88 (mm) | 1200*125*88 (mm) | 1200*125*88 (mm) |
| Input Voltage | AC220-240V 50/60Hz | ||
| Lumen Efficacy | 130-140lm/W | ||
| Luminous | 2340-2520lm | 2600-2800lm | 3250-3500lm |
| CCT | 3000-6500K | ||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| PC Cover | Milky | ||
| Power Factor | >0.9 | ||
| IP Grade | IP66 | ||
| Working Temp | -20˚-45˚C | ||
| Model No | VP4-30W | VP4-36W | VP5-50W |
|---|---|---|---|
| Wattage | 30W | 36W | 50W |
| Dimension | 1200*125*88 (mm) | 1200*125*88 (mm) | 1500*125*88 (mm) |
| Input Voltage | AC220-240V 50/60Hz | ||
| Lumen Efficacy | 130-140lm/W | 130-140lm/W | 130-140lm/W |
| Luminous | 3900-4200lm | 4680-5040lm | 6500-7000lm |
| 3000-6500K | |||
| CRI | >80 | ||
| Beam Angle | 120° | ||
| PC Cover | Milky | ||
| Power Factor | >0.9 | ||
| IP Grade | IP66 | ||
| Working Temp | -20˚-45˚C |

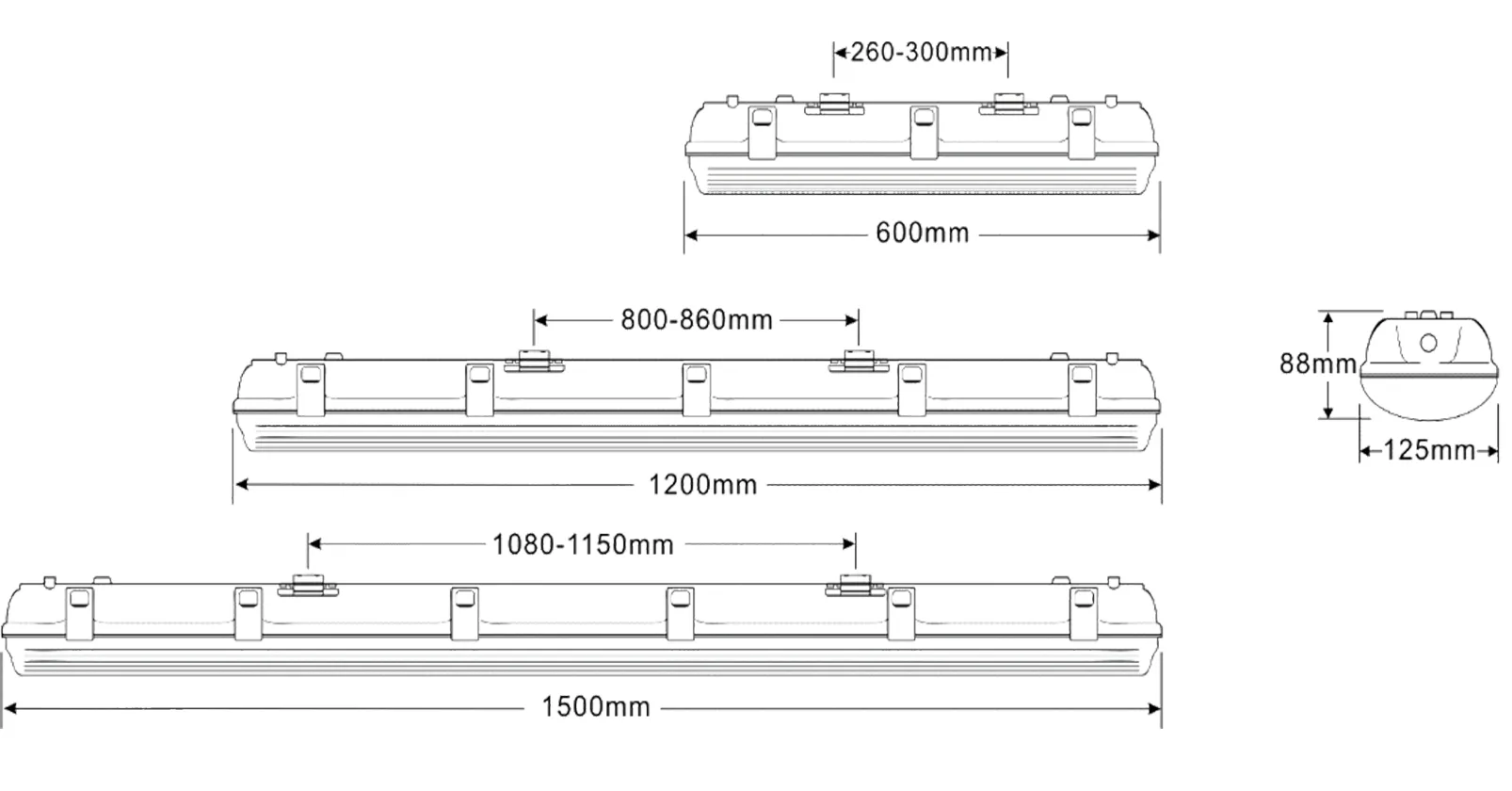

Product Size
MicroWave Motion Sensor Main Function Introduce
1)ON/OFF Function
With sufficient daylight, even there is motion detected, the light remain off status.
With insufficient brightness of environment, the LED light will be lighted up to 100% while motion detected.
The LED light remain 100% brightness within the hold-time.
After the last detection, and after the hold time elapsed, the LED light will be light off.
2)ON/OFF Function
No matter at day time or night time,When motion is detected, the micorwave sensor will switch on the LED light to 100% brightness.
After people left the detection area, the LED light will still remain 100% brightness within hold-time.
No matter at day time or night time,After the last motion is detected, and hold time elapsed, the LED light will be dim to 0% brightness.
3) 2-Step Dimming Function
1. If there is no any motion detected, the LED ligth will be keep at the low level brightness
2.When motion is detected, the micorwave sensor will switch the LED light to 100% brightness.
3. After elapse of the hold time, the motion sensor will dim the LED light to low level brightness again while there is no any motion detected.
Remoter

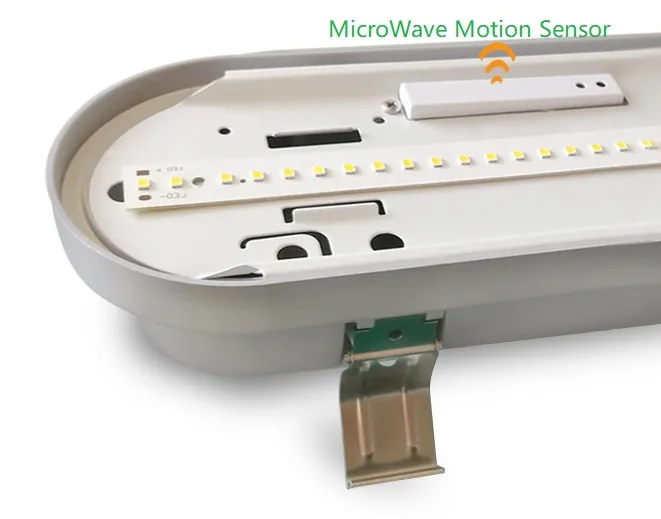

Build-in Microwave sensor
